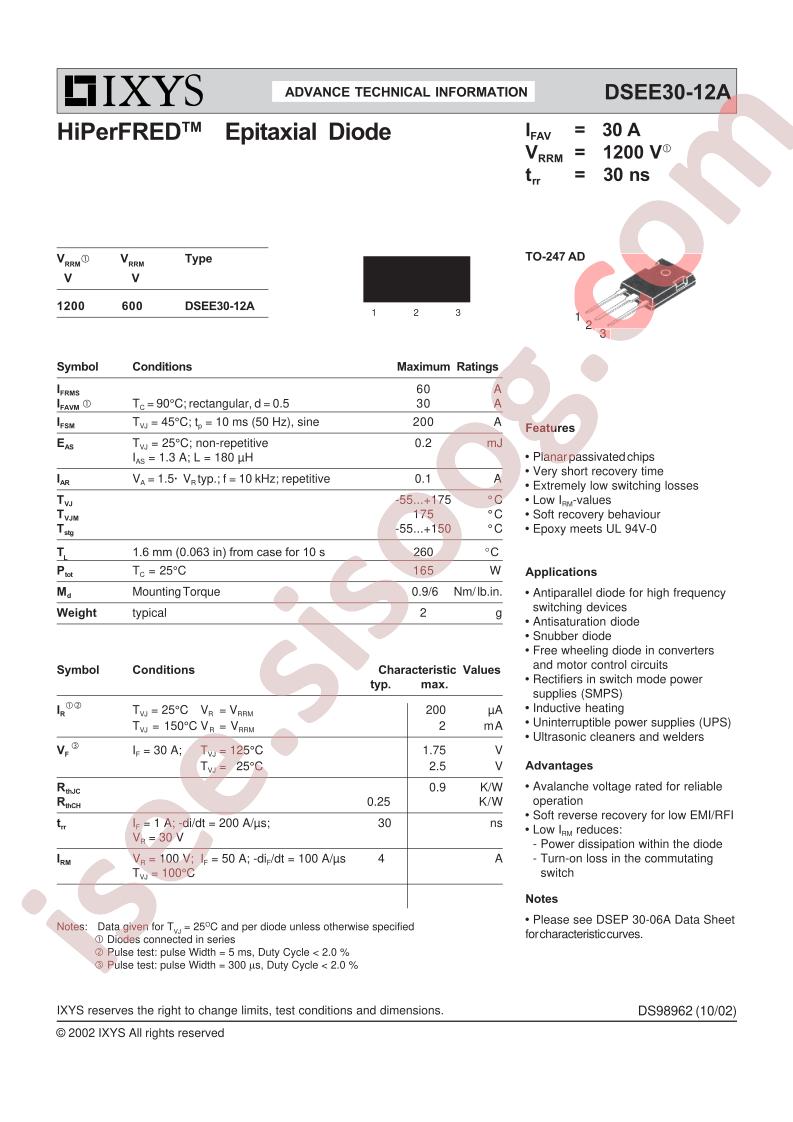

DSEE30-12A 数据手册
其他文档
未找到其他文档！
技术规格
- Manufacturer: IXYS
- Series: HiPerFRED™
- Packaging: Tube
- Part Status: Active
- Diode Configuration: 1 Pair Series Connection
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 1200V
- Current - Average Rectified (Io) (per Diode): 30A
- Voltage - Forward (Vf) (Max) @ If: 2.5V @ 30A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 30ns
- Current - Reverse Leakage @ Vr: 200µA @ 1200V
- Operating Temperature - Junction: -55°C ~ 175°C
- Mounting Type: Through Hole
- Package / Case: TO-3P-3 Full Pack
- Supplier Device Package: TO-247AD
- detail: Diode Array 1 Pair Series Connection Standard 1200V 30A Through Hole TO-3P-3 Full Pack
