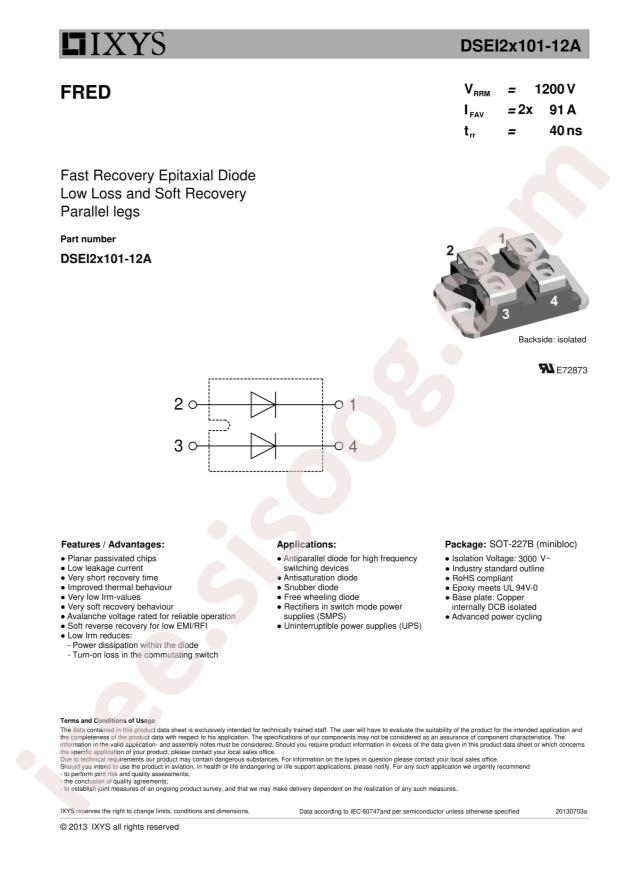

دیتاشیت DSEI2X101-12A
مشخصات دیتاشیت
| نام دیتاشیت |
DSEI2X101-12A
|
| حجم فایل |
553.817
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
5
|
مشخصات
-
RoHS:
true
-
Category:
Diodes/Diodes - Fast Recovery Rectifiers
-
Datasheet:
Littelfuse/IXYS DSEI2X101-12A
-
Diode Configuration:
2 Independent
-
Reverse Voltage (Vr):
1.2kV
-
Operating Temperature:
-40°C~+150°C@(Tvj)
-
Forward Voltage (Vf@If):
2.13V@200A
-
Reverse Leakage Current:
3mA@1.2kV
-
Reverse Recovery Time (trr):
150ns
-
Average Rectified Current (Io):
91A
-
Package:
SOT-227
-
Manufacturer:
IXYS
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Active
-
Diode Type:
Standard
-
Voltage - DC Reverse (Vr) (Max):
1200V
-
Current - Average Rectified (Io) (per Diode):
91A
-
Voltage - Forward (Vf) (Max) @ If:
1.87V @ 100A
-
Speed:
Fast Recovery =< 500ns, > 200mA (Io)
-
Current - Reverse Leakage @ Vr:
3mA @ 1200V
-
Mounting Type:
Chassis Mount
-
Package / Case:
SOT-227-4, miniBLOC
-
Supplier Device Package:
SOT-227B
-
Base Part Number:
DSEI2X
-
detail:
Diode Array 2 Independent Standard 1200V 91A Chassis Mount SOT-227-4, miniBLOC
