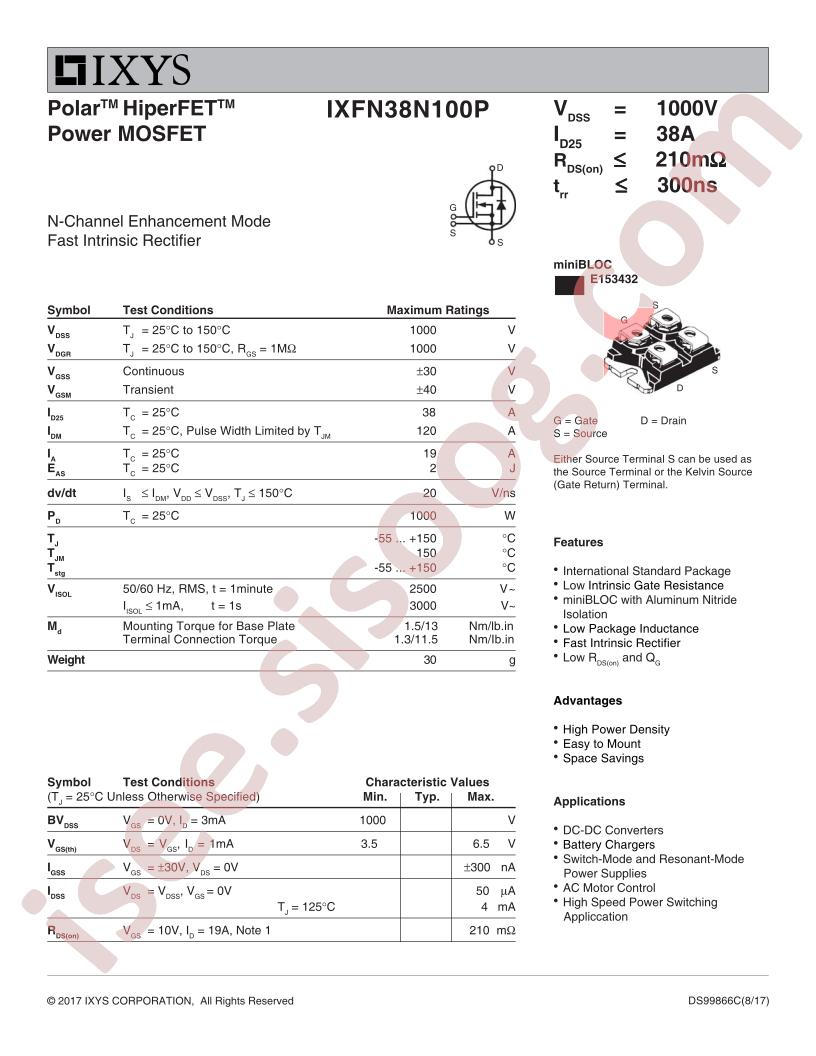

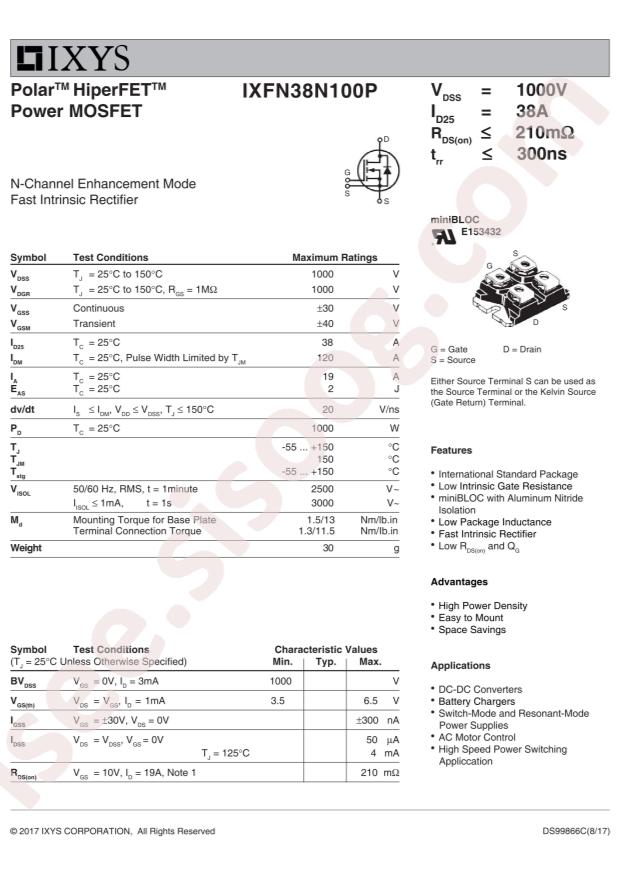

دیتاشیت IXFN38N100P
مشخصات دیتاشیت
| نام دیتاشیت |
IXFN38N100P
|
| حجم فایل |
147.403
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
6
|
مشخصات
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
Littelfuse/IXYS IXFN38N100P
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
1kW
-
Total Gate Charge (Qg@Vgs):
350nC@10V
-
Drain Source Voltage (Vdss):
1kV
-
Input Capacitance (Ciss@Vds):
24000pF@25V
-
Continuous Drain Current (Id):
38A
-
Gate Threshold Voltage (Vgs(th)@Id):
6.5V@1mA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
210mΩ@10V,19A
-
Package:
SOT-227
-
Manufacturer:
IXYS
-
Series:
HiPerFET™, PolarP2™
-
Packaging:
Tube
-
Part Status:
Active
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
1000V
-
Current - Continuous Drain (Id) @ 25°C:
38A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
10V
-
Rds On (Max) @ Id, Vgs:
210mOhm @ 19A, 10V
-
Vgs(th) (Max) @ Id:
6.5V @ 1mA
-
Gate Charge (Qg) (Max) @ Vgs:
350nC @ 10V
-
Vgs (Max):
±30V
-
Input Capacitance (Ciss) (Max) @ Vds:
24000pF @ 25V
-
FET Feature:
-
-
Power Dissipation (Max):
1000W (Tc)
-
Mounting Type:
Chassis Mount
-
Supplier Device Package:
SOT-227B
-
Package / Case:
SOT-227-4, miniBLOC
-
detail:
N-Channel 1000V 38A (Tc) 1000W (Tc) Chassis Mount SOT-227B
