IXTP160N10T دیتاشیت

IXTP160N10T

مشخصات دیتاشیت

نام دیتاشیت IXTP160N10T
حجم فایل 80.802 کیلوبایت
نوع فایل pdf
تعداد صفحات 6

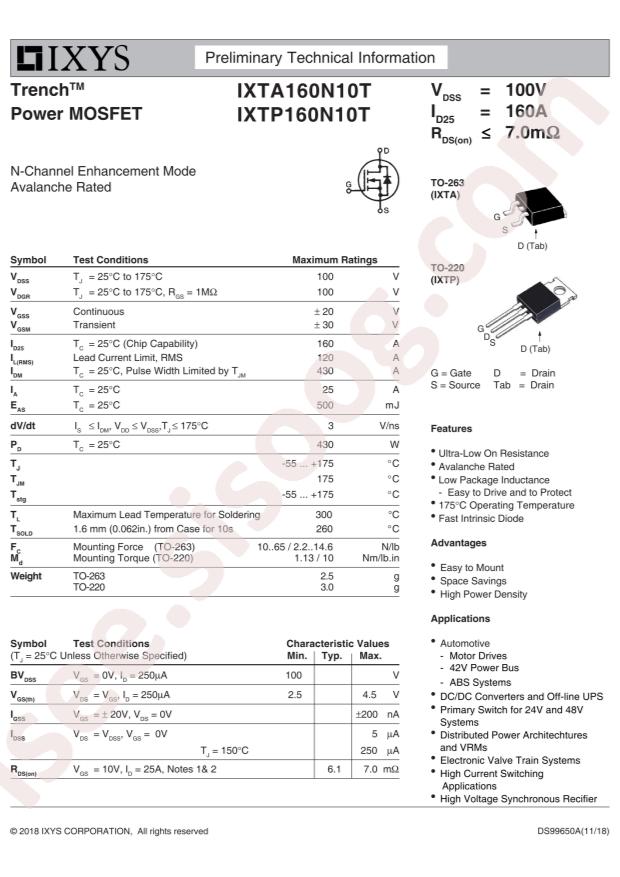

مشاهده دیتاشیت IXTP160N10T

دانلود دیتاشیت

سایر مستندات

IXT(A,P)160N10T 6 pages

مشخصات فنی

  • RoHS: true
  • Type: N Channel
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: Littelfuse/IXYS IXTP160N10T
  • Operating Temperature: -55°C~+175°C@(Tj)
  • Power Dissipation (Pd): 430W
  • Total Gate Charge (Qg@Vgs): 132nC@10V
  • Drain Source Voltage (Vdss): 100V
  • Input Capacitance (Ciss@Vds): 6600pF@25V
  • Continuous Drain Current (Id): 160A
  • Gate Threshold Voltage (Vgs(th)@Id): 4.5V@250uA
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 7mΩ@10V,25A

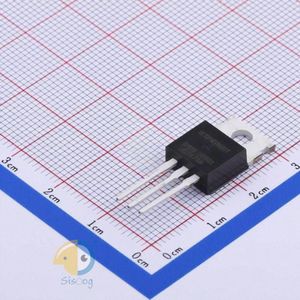

  • Package: TO-220
  • Manufacturer: IXYS
  • Series: TrenchMV™
  • Packaging: Tube
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 100V
  • Current - Continuous Drain (Id) @ 25°C: 160A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Rds On (Max) @ Id, Vgs: 7mOhm @ 25A, 10V
  • Vgs(th) (Max) @ Id: 4.5V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 132nC @ 10V
  • Vgs (Max): ±30V
  • Input Capacitance (Ciss) (Max) @ Vds: 6600pF @ 25V
  • FET Feature: -
  • Power Dissipation (Max): 430W (Tc)
  • Mounting Type: Through Hole
  • Supplier Device Package: TO-220AB
  • Package / Case: TO-220-3
  • detail: N-Channel 100V 160A (Tc) 430W (Tc) Through Hole TO-220AB
