دیتاشیت IXFP38N30X3
مشخصات دیتاشیت

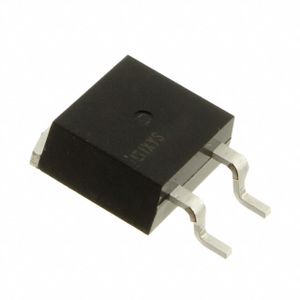

| نام دیتاشیت | IXFA38N30X3, IXFP38N30X3 |
|---|---|
| حجم فایل | 249.463 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 7 |
دانلود دیتاشیت IXFA38N30X3, IXFP38N30X3 |
IXFA38N30X3, IXFP38N30X3 Datasheet |
|---|
مشخصات
- Manufacturer: IXYS
- Series: HiPerFET™
- Packaging: Tube
- Part Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 300V
- Current - Continuous Drain (Id) @ 25°C: 38A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 50mOhm @ 19A, 10V
- Vgs(th) (Max) @ Id: 4.5V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs: 35nC @ 10V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 2240pF @ 25V
- FET Feature: -
- Power Dissipation (Max): 240W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-220
- Package / Case: TO-220-3
- detail: N-Channel 300V 38A (Tc) 240W (Tc) Through Hole TO-220
