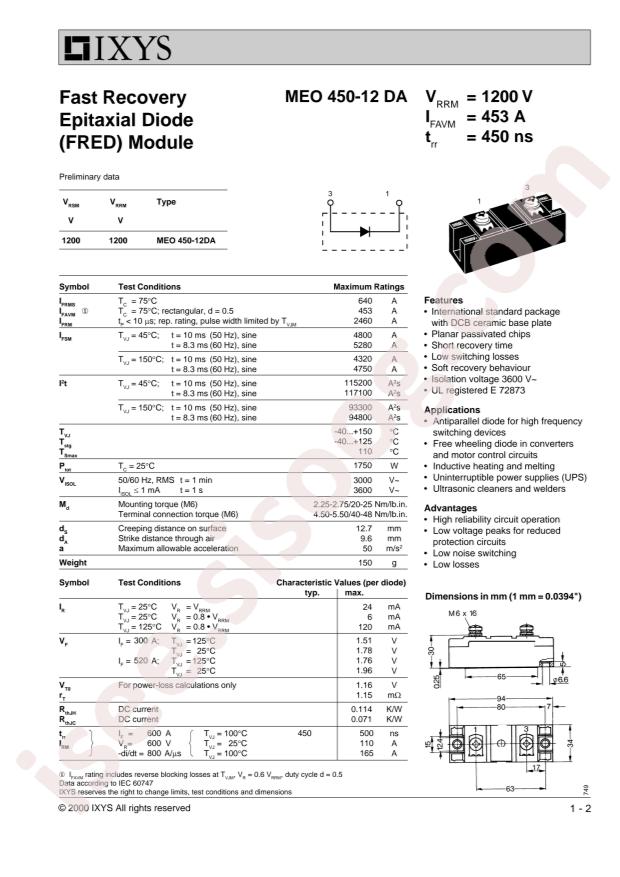

MEO450-12DA 数据手册
其他文档
MEO450-12DA 2 pages
技术规格
- RoHS: true
- Category: Diodes/Diodes - Fast Recovery Rectifiers
- Datasheet: Littelfuse/IXYS MEO450-12DA
- Diode Configuration: Single
- Reverse Voltage (Vr): 1.2kV
- Operating Temperature: -40°C~+150°C@(Tvj)
- Forward Voltage (Vf@If): 1.96V@520A
- Reverse Leakage Current: 24mA@1.2kV
- Reverse Recovery Time (trr): 450ns
- Average Rectified Current (Io): 453A
- Package: -
- Manufacturer: IXYS
- Series: -
- Packaging: Bulk
- Part Status: Active
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 1200V
- Current - Average Rectified (Io): 453A
- Voltage - Forward (Vf) (Max) @ If: 1.96V @ 520A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Current - Reverse Leakage @ Vr: 24mA @ 1200V
- Capacitance @ Vr, F: -
- Mounting Type: Chassis Mount
- Package / Case: Y4-M6
- Supplier Device Package: Y4-M6
- Operating Temperature - Junction: -40°C ~ 150°C
- detail: Diode Standard 1200V 453A Chassis Mount Y4-M6
