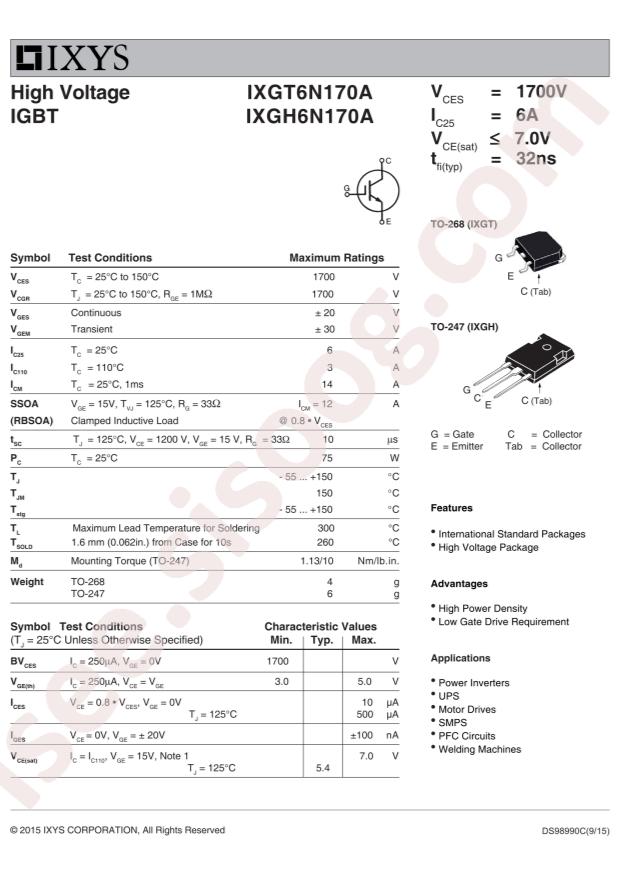

IXGH6N170A دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
IXGH6N170A
|
|
حجم فایل
|
71.931
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
6
|
مشخصات فنی
-
RoHS:
true
-
Type:
NPT
-
Category:
Triode/MOS Tube/Transistor/IGBTs
-
Datasheet:
Littelfuse/IXYS IXGH6N170A
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Collector Current (Ic):
6A
-
Power Dissipation (Pd):
75W
-
Turn?on Delay Time (Td(on)):
46ns
-
Input Capacitance (Cies@Vce):
-
-
Turn?on Switching Loss (Eon):
0.59mJ
-
Total Gate Charge (Qg@Ic,Vge):
18.5nC
-
Turn?off Delay Time (Td(off)):
220ns
-
Pulsed Collector Current (Icm):
14A
-
Turn?off Switching Loss (Eoff):
0.18mJ
-
Collector-Emitter Breakdown Voltage (Vces):
1700V
-
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
7V@15V,3A
-
Package:
TO-247
-
Manufacturer:
IXYS
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Active
-
IGBT Type:
NPT
-
Voltage - Collector Emitter Breakdown (Max):
1700V
-
Current - Collector (Ic) (Max):
12A
-
Current - Collector Pulsed (Icm):
24A
-
Vce(on) (Max) @ Vge, Ic:
4V @ 15V, 6A
-
Power - Max:
75W
-
Switching Energy:
1.5mJ (off)
-
Input Type:
Standard
-
Gate Charge:
20nC
-
Td (on/off) @ 25°C:
40ns/250ns
-
Test Condition:
1360V, 6A, 33Ohm, 15V
-
Mounting Type:
Through Hole
-
Package / Case:
TO-247-3
-
Supplier Device Package:
TO-247AD (IXGH)
-
Base Part Number:
IXG*6N170
-
detail:
IGBT NPT 1700V 12A 75W Through Hole TO-247AD (IXGH)
