DPG60C300HB دیتاشیت

DPG60C300HB

مشخصات دیتاشیت

نام دیتاشیت DPG60C300HB
حجم فایل 42.243 کیلوبایت
نوع فایل pdf
تعداد صفحات 5

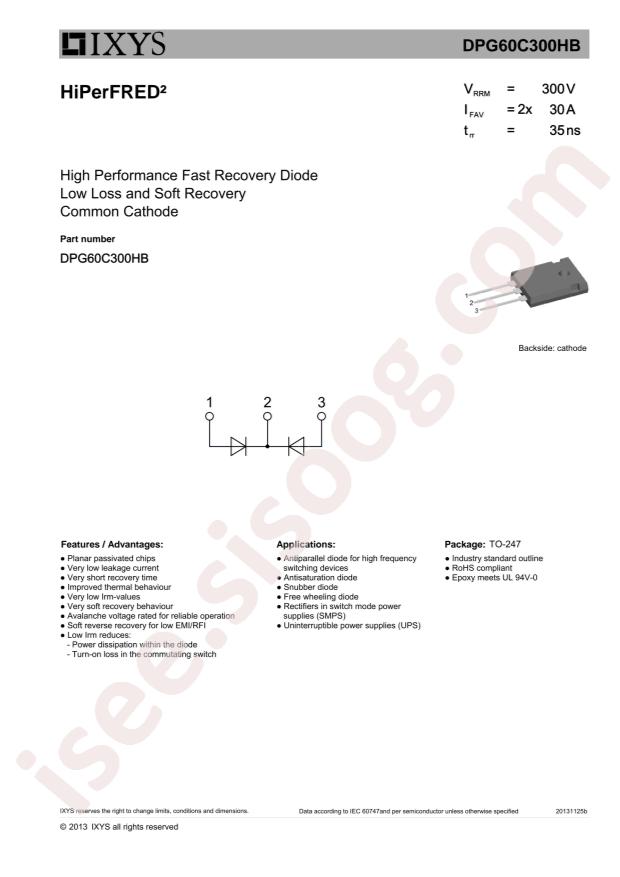

مشاهده دیتاشیت DPG60C300HB

دانلود دیتاشیت

سایر مستندات

DPG60C300HB 5 pages

DPG60C300HB 4 pages

مشخصات فنی

  • RoHS: true
  • Category: Diodes/Diodes - Fast Recovery Rectifiers
  • Datasheet: Littelfuse/IXYS DPG60C300HB
  • Diode Configuration: Dual Common Cathode
  • Reverse Voltage (Vr): 300V
  • Operating Temperature: -55°C~+175°C@(Tvj)
  • Forward Voltage (Vf@If): 1.63V@60A
  • Reverse Leakage Current: 1uA@300V
  • Reverse Recovery Time (trr): 35ns
  • Average Rectified Current (Io): 30A

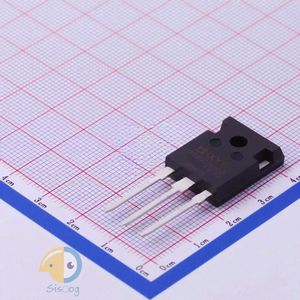

  • Package: TO-247
  • Manufacturer: IXYS
  • Series: HiPerFRED²™
  • Packaging: Tube
  • Part Status: Active
  • Diode Type: Standard
  • Voltage - DC Reverse (Vr) (Max): 300V
  • Current - Average Rectified (Io) (per Diode): 30A
  • Voltage - Forward (Vf) (Max) @ If: 1.34V @ 30A
  • Speed: Fast Recovery =< 500ns, > 200mA (Io)
  • Current - Reverse Leakage @ Vr: 1µA @ 300V
  • Operating Temperature - Junction: -55°C ~ 175°C
  • Mounting Type: Through Hole
  • Package / Case: TO-3P-3 Full Pack
  • Supplier Device Package: TO-247AD (HB)
  • Base Part Number: DPG60C300
  • detail: Diode Array 1 Pair Common Cathode Standard 300V 30A Through Hole TO-3P-3 Full Pack
