- DLA20IM800PC

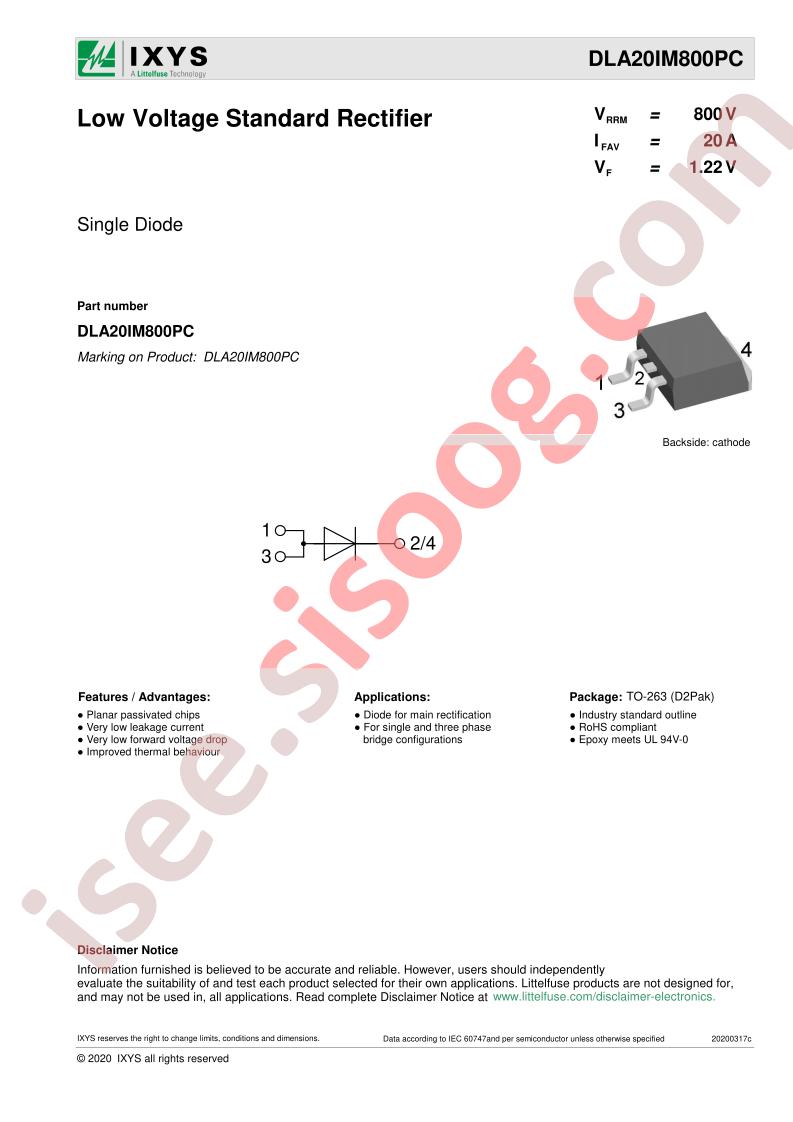

DLA20IM800PC-TUB Datasheet
Datasheet specifications
| Datasheet's name | DLA20IM800PC |
|---|---|
| File size | 179.204 KB |
| File type | |
| Number of pages | 5 |
Download Datasheet DLA20IM800PC |
Download Datasheet |
|---|
Other documentations
No other documentation was found!
Technical specifications
- Manufacturer: IXYS
- Series: -
- Packaging: Tube
- Part Status: Active
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 800V
- Current - Average Rectified (Io): 20A
- Voltage - Forward (Vf) (Max) @ If: 1.2V @ 20A
- Speed: Standard Recovery >500ns, > 200mA (Io)
- Current - Reverse Leakage @ Vr: 10µA @ 800V
- Capacitance @ Vr, F: 4pF @ 400V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
- Supplier Device Package: TO-263 (D²Pak)
- Operating Temperature - Junction: -55°C ~ 175°C
- detail: Diode Standard 800V 20A Surface Mount TO-263 (D²Pak)
