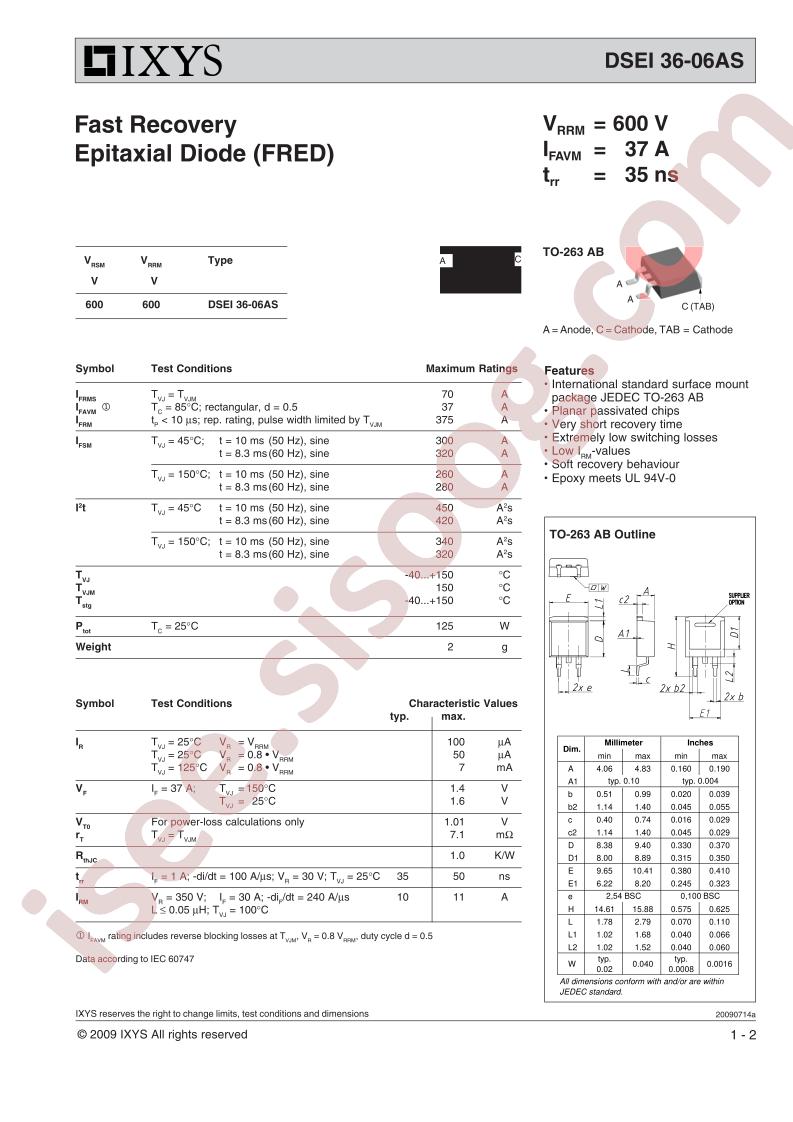

DSEI36-06AS-TRL Datasheet

DSEI 36-06AS

Datasheet specifications

Datasheet's name DSEI 36-06AS
File size 109.978 KB
File type pdf
Number of pages 2

Download Datasheet DSEI 36-06AS

Download Datasheet

Other documentations

No other documentation was found!

Technical specifications

  • Manufacturer: IXYS
  • Series: FRED
  • Packaging: Tape & Reel (TR)
  • Part Status: Active
  • Diode Type: Standard
  • Voltage - DC Reverse (Vr) (Max): 600V
  • Current - Average Rectified (Io): 37A
  • Voltage - Forward (Vf) (Max) @ If: 1.6V @ 37A
  • Speed: Fast Recovery =< 500ns, > 200mA (Io)
  • Reverse Recovery Time (trr): 50ns
  • Current - Reverse Leakage @ Vr: 100µA @ 600V
  • Capacitance @ Vr, F: -
  • Mounting Type: Surface Mount
  • Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
  • Supplier Device Package: TO-263AB
  • Operating Temperature - Junction: -40°C ~ 150°C
  • Base Part Number: DSEI36-06
  • detail: Diode Standard 600V 37A Surface Mount TO-263AB
