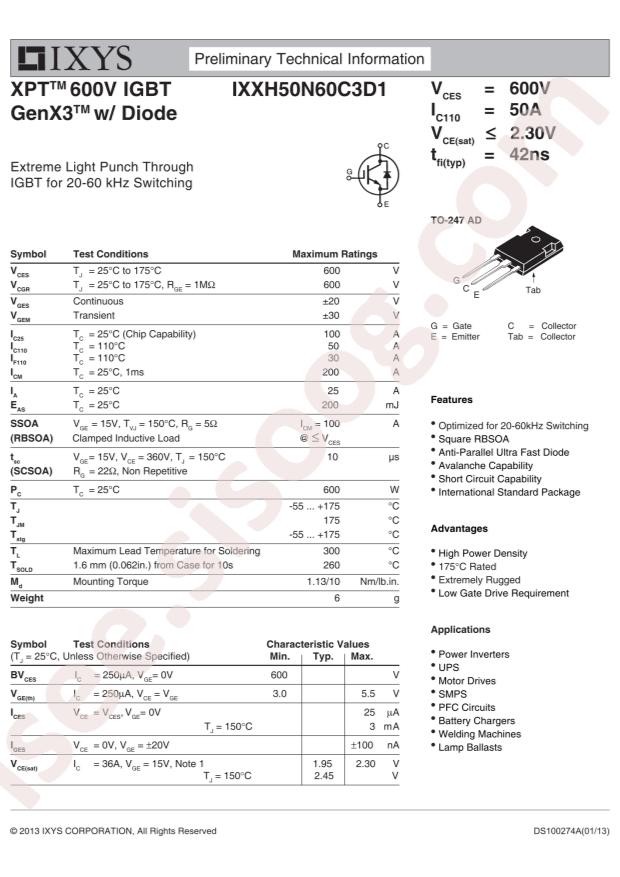

IXXH50N60C3D1 دیتاشیت

IXXH50N60C3D1

مشخصات دیتاشیت

نام دیتاشیت IXXH50N60C3D1
حجم فایل 78.774 کیلوبایت
نوع فایل pdf
تعداد صفحات 8

دانلود دیتاشیت IXXH50N60C3D1

دانلود دیتاشیت

سایر مستندات

IXXH50N60C3 7 pages

مشخصات فنی

  • RoHS: true
  • Type: -
  • Category: Triode/MOS Tube/Transistor/IGBTs
  • Datasheet: Littelfuse/IXYS IXXH50N60C3D1
  • Operating Temperature: -55°C~+175°C@(Tj)
  • Collector Current (Ic): 100A
  • Power Dissipation (Pd): 600W
  • Input Capacitance (Cies@Vce): -
  • Turn?on Switching Loss (Eon): 0.72mJ
  • Pulsed Collector Current (Icm): 200A
  • Turn?off Switching Loss (Eoff): 0.33mJ
  • Diode Reverse Recovery Time (Trr): 25ns
  • Collector-Emitter Breakdown Voltage (Vces): 600V
  • Gate-Emitter Threshold Voltage (Vge(th)@Ic): -
  • Package: TO-247
  • Manufacturer: IXYS
  • Series: GenX3™, XPT™
  • Packaging: Tube
  • Part Status: Active
  • IGBT Type: PT
  • Voltage - Collector Emitter Breakdown (Max): 600V
  • Current - Collector (Ic) (Max): 100A
  • Current - Collector Pulsed (Icm): 200A
  • Vce(on) (Max) @ Vge, Ic: 2.3V @ 15V, 36A
  • Power - Max: 600W
  • Switching Energy: 720µJ (on), 330µJ (off)
  • Input Type: Standard
  • Gate Charge: 64nC
  • Td (on/off) @ 25°C: 24ns/62ns
  • Test Condition: 360V, 36A, 5Ohm, 15V
  • Mounting Type: Through Hole
  • Package / Case: TO-247-3
  • Supplier Device Package: TO-247 (IXXH)
  • Base Part Number: IXX*N60
  • detail: IGBT PT 600V 100A 600W Through Hole TO-247 (IXXH)
