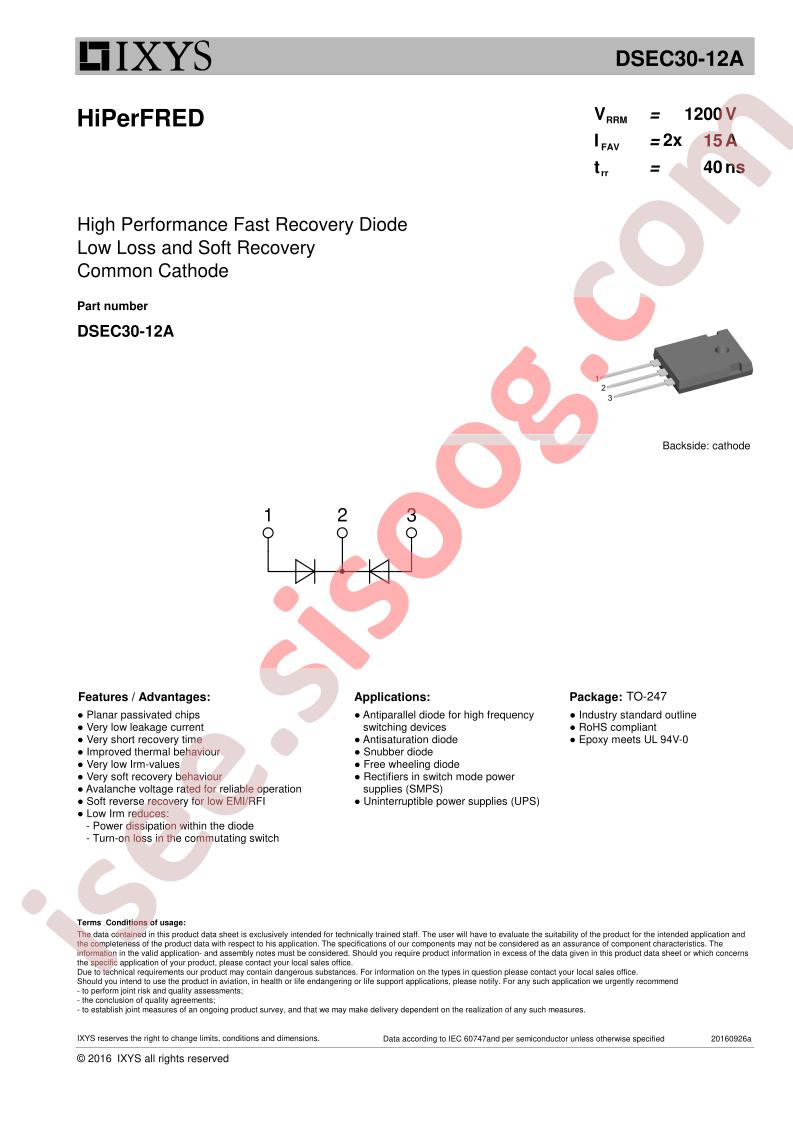

DSEC30-12A Datasheet
Datasheet specifications
| Datasheet's name | DSEC30-12A |
|---|---|
| File size | 335.253 KB |
| File type | |
| Number of pages | 5 |
Download Datasheet DSEC30-12A |
Download Datasheet |
|---|
Other documentations
No other documentation was found!
Technical specifications
- Manufacturer: IXYS
- Series: HiPerFRED™
- Packaging: Tube
- Part Status: Active
- Diode Configuration: 1 Pair Common Cathode
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 1200V
- Current - Average Rectified (Io) (per Diode): 15A
- Voltage - Forward (Vf) (Max) @ If: 2.74V @ 15A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 40ns
- Current - Reverse Leakage @ Vr: 100µA @ 1200V
- Operating Temperature - Junction: -55°C ~ 175°C
- Mounting Type: Through Hole
- Package / Case: TO-3P-3 Full Pack
- Supplier Device Package: TO-247AD
- detail: Diode Array 1 Pair Common Cathode Standard 1200V 15A Through Hole TO-3P-3 Full Pack
