DSSK80-0045B دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
DSSK80-0045B
|
|
حجم فایل
|
63.897
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
2
|
مشخصات فنی
-
RoHS:
true
-
Category:
Diodes/Schottky Barrier Diodes (SBD)
-

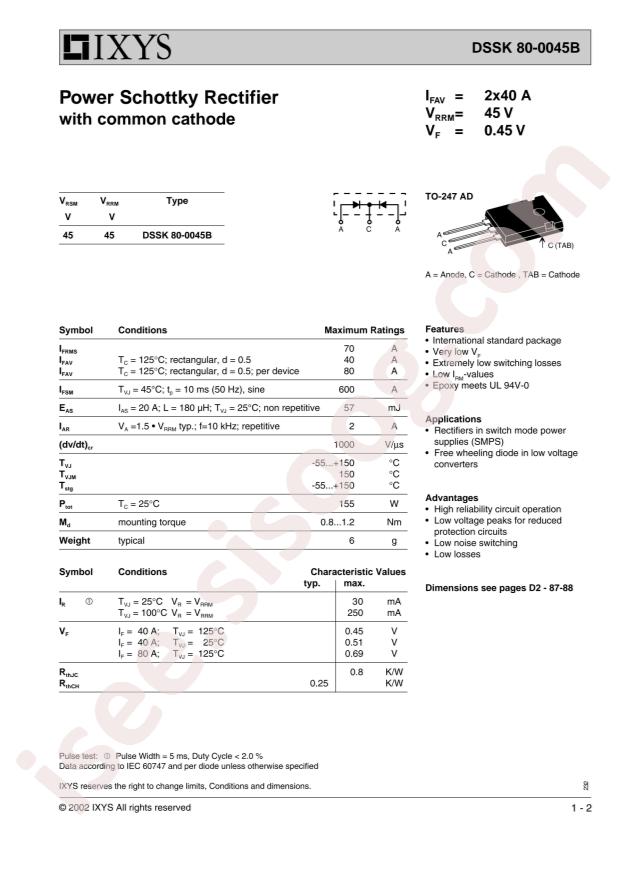

Datasheet:
Littelfuse/IXYS DSSK80-0045B
-
Diode Configuration:
Dual Common Cathode
-
Reverse Voltage (Vr):
45V
-
Forward Voltage (Vf@If):
510mV@40A
-
Reverse Leakage Current (Ir):
30mA@40V
-
Average Rectified Current (Io):
40A
-
Package:
TO-247AD
-
Manufacturer:
IXYS
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Active
-
Diode Type:
Schottky
-
Voltage - DC Reverse (Vr) (Max):
45V
-
Current - Average Rectified (Io) (per Diode):
40A
-
Voltage - Forward (Vf) (Max) @ If:
510mV @ 40A
-
Speed:
Fast Recovery =< 500ns, > 200mA (Io)
-
Current - Reverse Leakage @ Vr:
30mA @ 45V
-
Operating Temperature - Junction:
-55°C ~ 150°C
-
Mounting Type:
Through Hole
-
Package / Case:
TO-3P-3 Full Pack
-
Supplier Device Package:
TO-247AD
-
detail:
Diode Array 1 Pair Common Cathode Schottky 45V 40A Through Hole TO-3P-3 Full Pack
