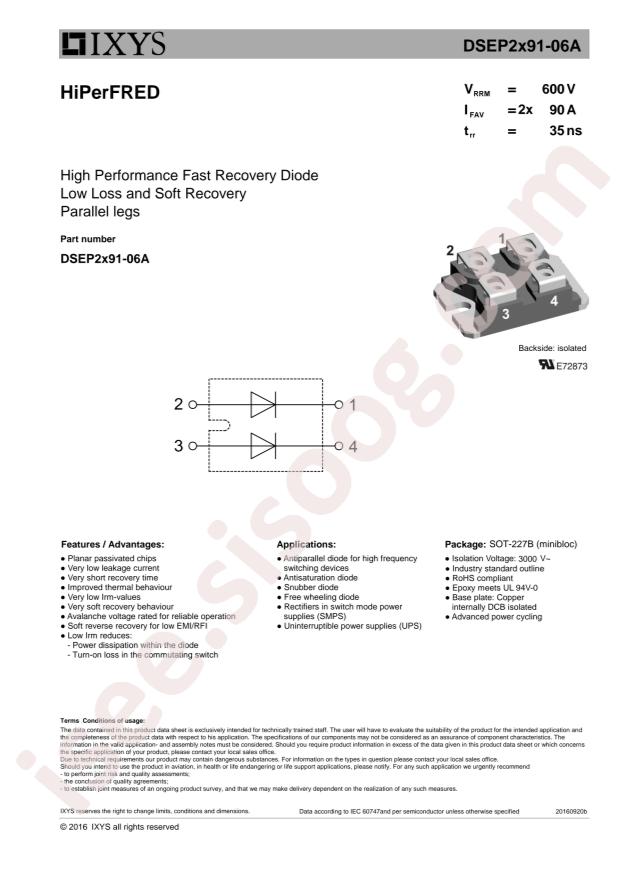

دیتاشیت DSEP2X91-06A
مشخصات دیتاشیت
| نام دیتاشیت |
DSEP2X91-06A
|
| حجم فایل |
497.655
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
5
|
مشخصات
-
RoHS:
true
-
Category:
Diodes/Diodes - Fast Recovery Rectifiers
-
Datasheet:
Littelfuse/IXYS DSEP2X91-06A
-
Diode Configuration:
2 Independent
-
Reverse Voltage (Vr):
600V
-
Operating Temperature:
-40°C~+150°C@(Tvj)
-
Forward Voltage (Vf@If):
2.05V@90A
-
Reverse Leakage Current:
1mA@600V
-
Reverse Recovery Time (trr):
30ns
-
Average Rectified Current (Io):
90A
-
Package:
SOT-227
-
Manufacturer:
IXYS
-
Series:
HiPerFRED™
-
Packaging:
Tube
-
Part Status:
Active
-
Diode Type:
Standard
-
Voltage - DC Reverse (Vr) (Max):
600V
-
Current - Average Rectified (Io) (per Diode):
90A
-
Voltage - Forward (Vf) (Max) @ If:
2.05V @ 90A
-
Speed:
Fast Recovery =< 500ns, > 200mA (Io)
-
Current - Reverse Leakage @ Vr:
1mA @ 600V
-
Mounting Type:
Chassis Mount
-
Package / Case:
SOT-227-4, miniBLOC
-
Supplier Device Package:
SOT-227B
-
Base Part Number:
DSEP2X
-
detail:
Diode Array 2 Independent Standard 600V 90A Chassis Mount SOT-227-4, miniBLOC
