DPG30I400HA دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
DPG30I400HA
|
|
حجم فایل
|
41.119
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
5
|
مشخصات فنی
-
RoHS:
true
-
Category:
Diodes/Diodes - Fast Recovery Rectifiers
-
Datasheet:
Littelfuse/IXYS DPG30I400HA
-
Diode Configuration:
Single
-
Reverse Voltage (Vr):
400V
-
Operating Temperature:
-55°C~+175°C@(Tvj)
-
Forward Voltage (Vf@If):
1.69V@60A
-
Reverse Leakage Current:
1uA@400V
-
Reverse Recovery Time (trr):
45ns
-
Average Rectified Current (Io):
30A
-
Package:
TO-247-2
-
Manufacturer:
IXYS
-
Series:
HiPerFRED²™
-
Packaging:
Tube
-
Part Status:
Active
-
Diode Type:
Standard
-
Voltage - DC Reverse (Vr) (Max):
400V
-
Current - Average Rectified (Io):
30A
-
Voltage - Forward (Vf) (Max) @ If:
1.41V @ 30A
-
Speed:
Fast Recovery =< 500ns, > 200mA (Io)
-
Current - Reverse Leakage @ Vr:
1µA @ 400V
-
Capacitance @ Vr, F:
32pF @ 200V, 1MHz
-
Mounting Type:
Through Hole
-

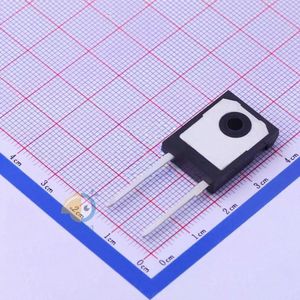

Package / Case:
TO-247-2
-
Supplier Device Package:
TO-247
-
Operating Temperature - Junction:
-55°C ~ 175°C
-
detail:
Diode Standard 400V 30A Through Hole TO-247
