CLA30E1200HB دیتاشیت

CLA30E1200HB

مشخصات دیتاشیت

نام دیتاشیت CLA30E1200HB
حجم فایل 41.226 کیلوبایت
نوع فایل pdf
تعداد صفحات 6

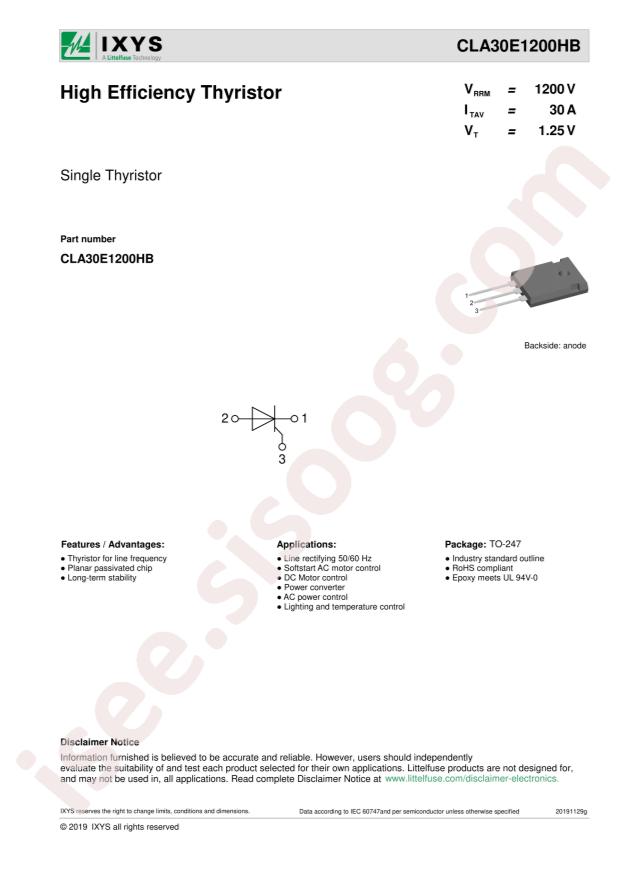

مشاهده دیتاشیت CLA30E1200HB

دانلود دیتاشیت

سایر مستندات

CLA30E1200HB 6 pages

مشخصات فنی

  • RoHS: true
  • Category: Triode/MOS Tube/Transistor/TRIACs
  • SCR Type: 1个单向可控硅
  • Datasheet: Littelfuse/IXYS CLA30E1200HB
  • Holding Current (Ih): 60mA
  • Operating Temperature: -40°C~+150°C
  • Gate Trigger Current(Igt): 28mA
  • Gate Trigger Voltage (Vgt): 1.3V
  • RMS On-State Current(It (rms)): 47A
  • Peak Forward On?State Voltage (Vtm): 1.56V
  • Peak Repetitive Off?State Voltage (Vdrm): 1.2kV

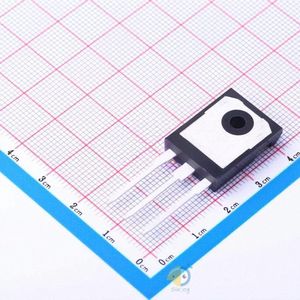

  • Package: TO-247-3
  • Manufacturer: IXYS
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • Voltage - Off State: 1.2kV
  • Voltage - Gate Trigger (Vgt) (Max): 1.3V
  • Current - Gate Trigger (Igt) (Max): 28mA
  • Voltage - On State (Vtm) (Max): 1.56V
  • Current - On State (It (AV)) (Max): 30A
  • Current - On State (It (RMS)) (Max): 47A
  • Current - Hold (Ih) (Max): 60mA
  • Current - Off State (Max): 10µA
  • Current - Non Rep. Surge 50, 60Hz (Itsm): 300A, 325A
  • Mounting Type: Through Hole
  • Package / Case: TO-247-3
  • Supplier Device Package: TO-247AD
  • detail: SCR 1.2kV 47A Standard Recovery Through Hole TO-247AD
