IXGQ85N33PCD1 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
IXGQ85N33PCD1
|
|
حجم فایل
|
66.741
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
6
|
مشخصات فنی
-
RoHS:
true
-
Type:
-
-
Category:
Triode/MOS Tube/Transistor/IGBTs
-
Datasheet:
Littelfuse/IXYS IXGQ85N33PCD1
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Collector Current (Ic):
85A
-
Power Dissipation (Pd):
150W
-
Input Capacitance (Cies@Vce):
-
-
Turn?on Switching Loss (Eon):
-
-
Total Gate Charge (Qg@Ic,Vge):
80nC
-
Diode Reverse Recovery Time (Trr):
250ns
-
Collector-Emitter Breakdown Voltage (Vces):
330V
-
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
3V@15V,100A
-

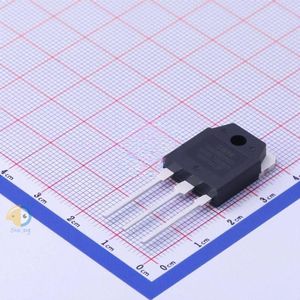

Package:
TO-3P-3
-
Manufacturer:
IXYS
-
Series:
Polar™
-
Packaging:
Tube
-
Part Status:
Active
-
IGBT Type:
-
-
Voltage - Collector Emitter Breakdown (Max):
330V
-
Current - Collector (Ic) (Max):
85A
-
Vce(on) (Max) @ Vge, Ic:
3V @ 15V, 100A
-
Power - Max:
150W
-
Switching Energy:
-
-
Input Type:
Standard
-
Gate Charge:
80nC
-
Td (on/off) @ 25°C:
-
-
Test Condition:
-
-
Reverse Recovery Time (trr):
250ns
-
Mounting Type:
Through Hole
-
Package / Case:
TO-3P-3, SC-65-3
-
Supplier Device Package:
TO-3P
-
detail:
IGBT 330V 85A 150W Through Hole TO-3P
