دیتاشیت IXKH20N60C5
مشخصات دیتاشیت
| نام دیتاشیت | IXK(H,P)20N60C5 |
|---|---|
| حجم فایل | 157.129 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 5 |
دانلود دیتاشیت IXK(H,P)20N60C5 |

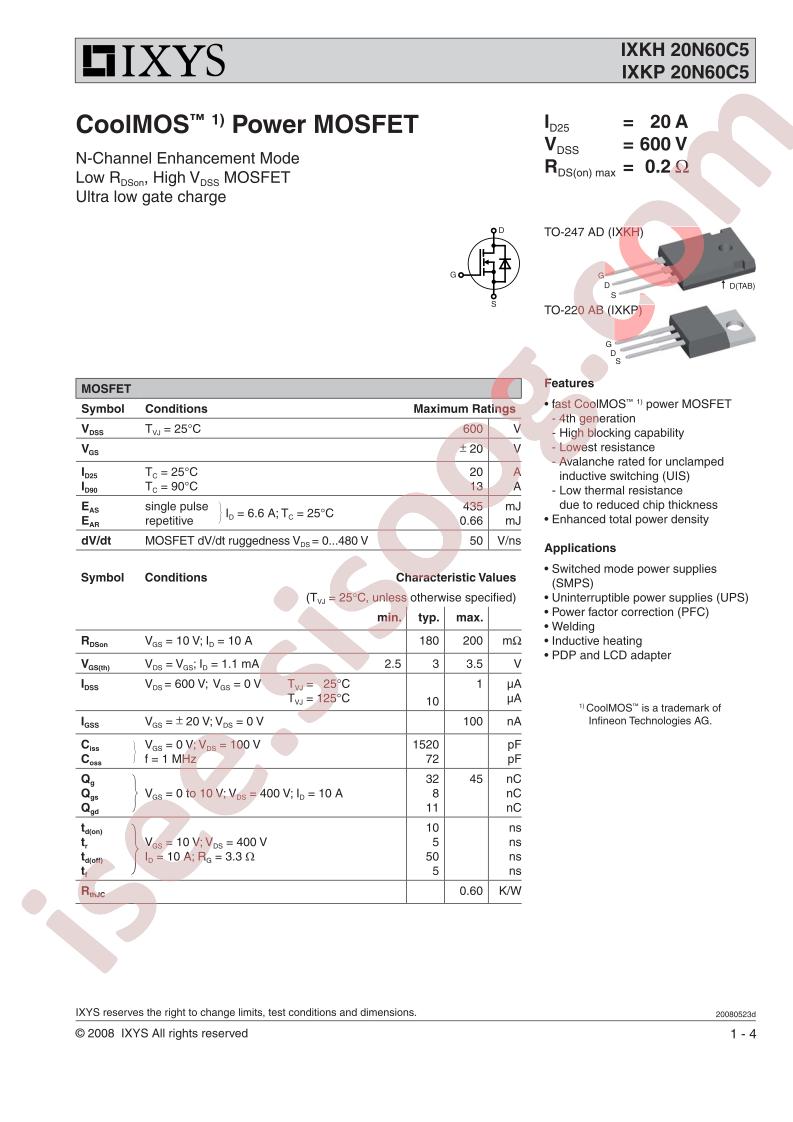

IXK(H,P)20N60C5 Datasheet |
|---|
مشخصات
- Manufacturer: IXYS
- Series: CoolMOS™
- Packaging: Tube
- Part Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 600V
- Current - Continuous Drain (Id) @ 25°C: 20A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 200mOhm @ 10A, 10V
- Vgs(th) (Max) @ Id: 3.5V @ 1.1mA
- Gate Charge (Qg) (Max) @ Vgs: 45nC @ 10V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 1520pF @ 100V
- FET Feature: -
- Power Dissipation (Max): -
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-247AD (IXKH)
- Package / Case: TO-3P-3 Full Pack
- detail: N-Channel 600V 20A (Tc) Through Hole TO-247AD (IXKH)
