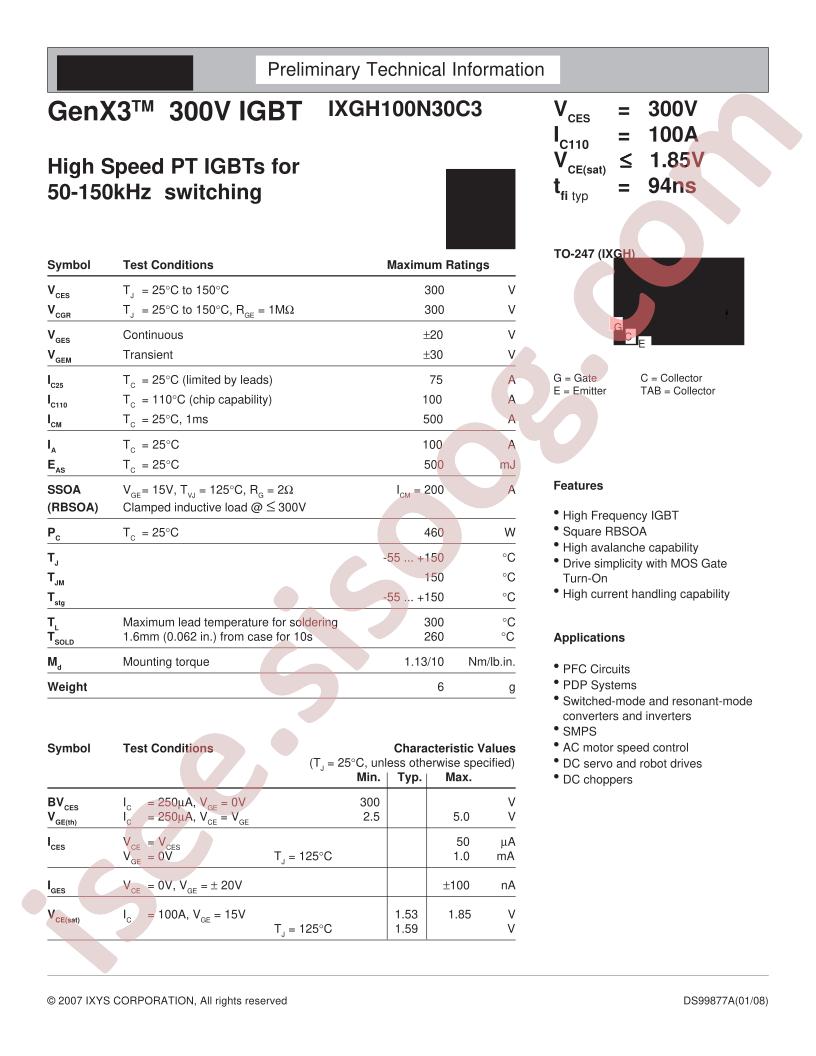

IXGH100N30C3 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
IXGH100N30C3
|
|
حجم فایل
|
110.297
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
7
|
مشخصات فنی
-
Manufacturer:
IXYS
-
Series:
GenX3™
-
Packaging:
Tube
-
Part Status:
Active
-
IGBT Type:
PT
-
Voltage - Collector Emitter Breakdown (Max):
300V
-
Current - Collector (Ic) (Max):
75A
-
Current - Collector Pulsed (Icm):
500A
-
Vce(on) (Max) @ Vge, Ic:
1.85V @ 15V, 100A
-
Power - Max:
460W
-
Switching Energy:
230µJ (on), 520µJ (off)
-
Input Type:
Standard
-
Gate Charge:
162nC
-
Td (on/off) @ 25°C:
23ns/105ns
-
Test Condition:
200V, 50A, 2Ohm, 15V
-
Operating Temperature:
-55°C ~ 150°C (TJ)
-
Mounting Type:
Through Hole
-
Package / Case:
TO-247-3
-
Supplier Device Package:
TO-247AD (IXGH)
-
detail:
IGBT PT 300V 75A 460W Through Hole TO-247AD (IXGH)
