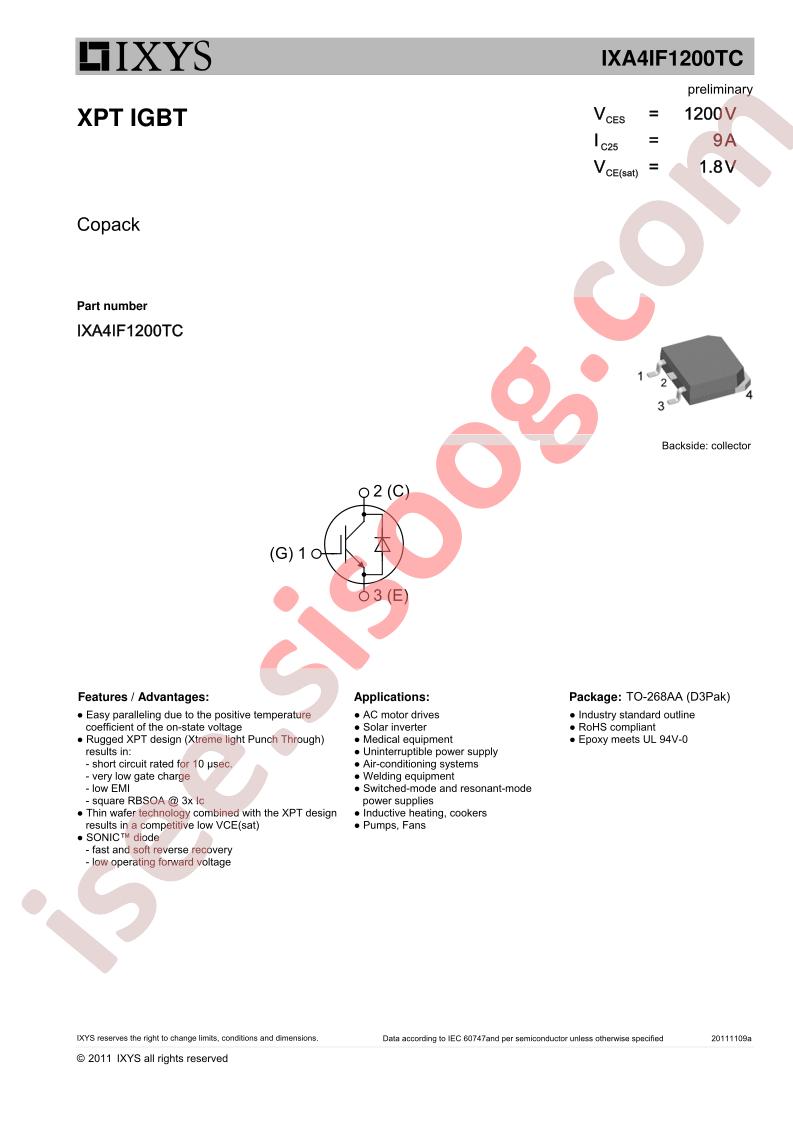

IXA4IF1200TC-TUB 数据手册
其他文档
未找到其他文档！
技术规格
- Manufacturer: IXYS
- Series: -
- Packaging: Tube
- Part Status: Active
- IGBT Type: PT
- Voltage - Collector Emitter Breakdown (Max): 1200V
- Current - Collector (Ic) (Max): 9A
- Vce(on) (Max) @ Vge, Ic: 2.1V @ 15V, 3A
- Power - Max: 45W
- Switching Energy: 400µJ (on), 300µJ (off)
- Input Type: Standard
- Gate Charge: 12nC
- Td (on/off) @ 25°C: -
- Test Condition: 600V, 3A, 330Ohm, 15V
- Reverse Recovery Time (trr): 350ns
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: TO-268-3, D³Pak (2 Leads + Tab), TO-268AA
- Supplier Device Package: TO-268AA
- detail: IGBT PT 1200V 9A 45W Surface Mount TO-268AA
