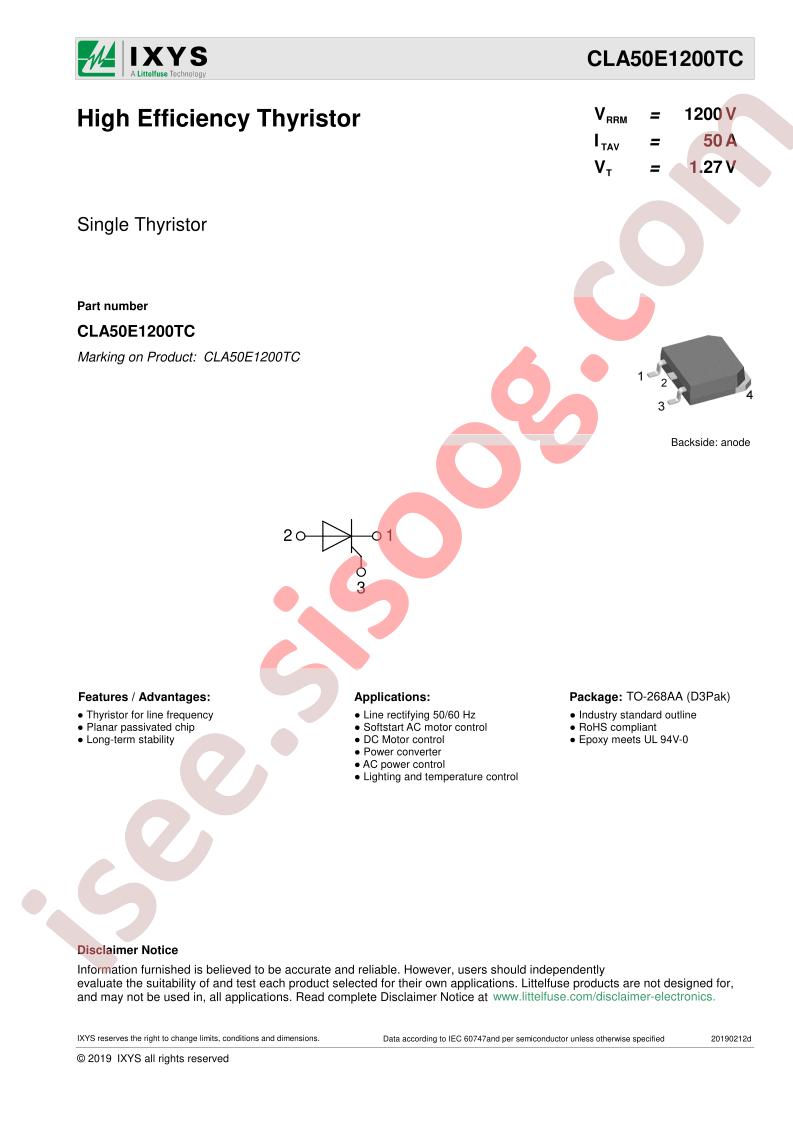

CLA50E1200TC-TUB Datasheet
Datasheet specifications
| Datasheet's name | CLA50E1200TC |
|---|---|
| File size | 193.314 KB |
| File type | |
| Number of pages | 5 |
Download Datasheet CLA50E1200TC |
Download Datasheet |
|---|
Other documentations
No other documentation was found!
Technical specifications
- Manufacturer: IXYS
- Series: -
- Packaging: Tube
- Part Status: Active
- Voltage - Off State: 1.2kV
- Voltage - Gate Trigger (Vgt) (Max): 1.5V
- Current - Gate Trigger (Igt) (Max): 50mA
- Voltage - On State (Vtm) (Max): 1.6V
- Current - On State (It (AV)) (Max): 50A
- Current - On State (It (RMS)) (Max): 80A
- Current - Hold (Ih) (Max): 75mA
- Current - Off State (Max): 50µA
- Current - Non Rep. Surge 50, 60Hz (Itsm): 550A, 590A
- SCR Type: Standard Recovery
- Operating Temperature: -40°C ~ 150°C
- Mounting Type: Surface Mount
- Package / Case: TO-268-3, D³Pak (2 Leads + Tab), TO-268AA
- Supplier Device Package: TO-268AA
- detail: SCR 1.2kV 80A Standard Recovery Surface Mount TO-268AA
