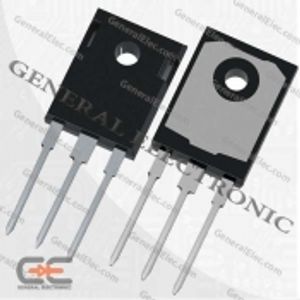

دیتاشیت IXFK48N60P

IXF(K,X)48N60P

مشخصات دیتاشیت

نام دیتاشیت IXF(K,X)48N60P
حجم فایل 271.978 کیلوبایت
نوع فایل pdf
تعداد صفحات 5

دانلود دیتاشیت IXF(K,X)48N60P

IXF(K,X)48N60P Datasheet

مشخصات

  • Manufacturer: IXYS
  • Series: HiPerFET™, PolarHT™
  • Packaging: Tube
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 600V
  • Current - Continuous Drain (Id) @ 25°C: 48A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Rds On (Max) @ Id, Vgs: 135mOhm @ 500mA, 10V
  • Vgs(th) (Max) @ Id: 5V @ 8mA
  • Gate Charge (Qg) (Max) @ Vgs: 150nC @ 10V
  • Vgs (Max): ±30V
  • Input Capacitance (Ciss) (Max) @ Vds: 8860pF @ 25V
  • FET Feature: -
  • Power Dissipation (Max): 830W (Tc)
  • Operating Temperature: -55°C ~ 150°C (TJ)
  • Mounting Type: Through Hole
  • Supplier Device Package: TO-264AA (IXFK)
  • Package / Case: TO-264-3, TO-264AA
  • detail: N-Channel 600V 48A (Tc) 830W (Tc) Through Hole TO-264AA (IXFK)
