DH60-16A Datasheet
Datasheet specifications
| Datasheet's name | DH60-16A |
|---|---|
| File size | 296.027 KB |
| File type | |
| Number of pages | 5 |
Download Datasheet DH60-16A |
Download Datasheet |
|---|
Other documentations
No other documentation was found!
Technical specifications
- Manufacturer: IXYS
- Series: -
- Packaging: Tube
- Part Status: Active
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 1600V
- Current - Average Rectified (Io): 60A
- Voltage - Forward (Vf) (Max) @ If: 2.04V @ 60A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 230ns
- Current - Reverse Leakage @ Vr: 200µA @ 1400V
- Capacitance @ Vr, F: 32pF @ 1200V, 1MHz
- Mounting Type: Through Hole

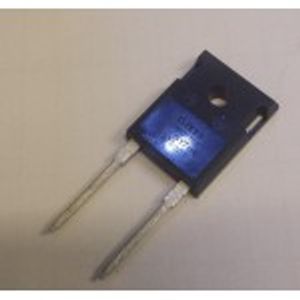

- Package / Case: TO-247-2
- Supplier Device Package: TO-247AD
- Operating Temperature - Junction: -55°C ~ 150°C
- detail: Diode Standard 1600V 60A Through Hole TO-247AD
