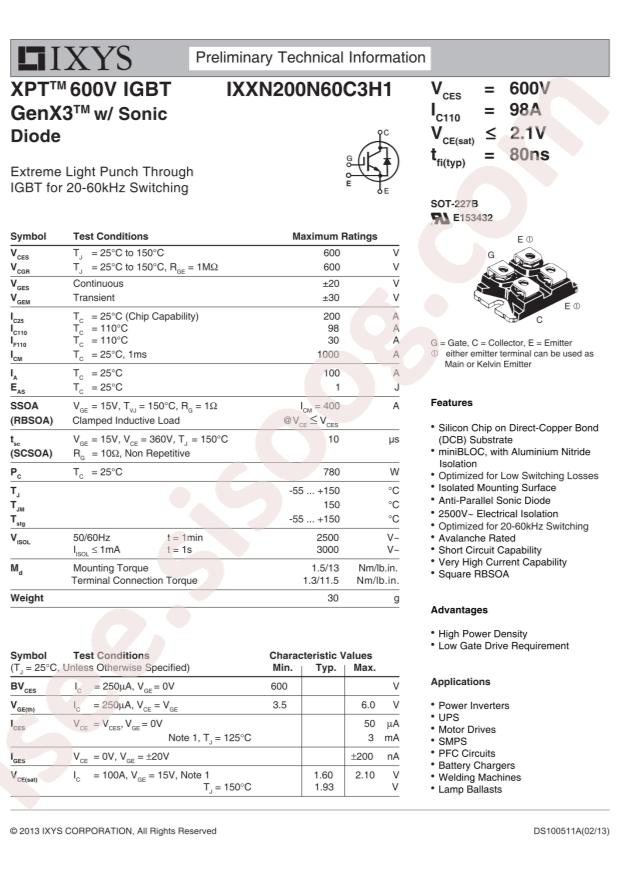

IXXN200N60C3H1 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
IXXN200N60C3H1
|
|
حجم فایل
|
84.621
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
8
|
مشخصات فنی
-
RoHS:
true
-
Type:
PT
-
Category:
Triode/MOS Tube/Transistor/IGBTs
-
Datasheet:
Littelfuse/IXYS IXXN200N60C3H1
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Collector Current (Ic):
200A
-
Power Dissipation (Pd):
780W
-
Input Capacitance (Cies@Vce):
9.9nF@25V
-
Collector Cut-Off Current (Ices@Vce):
50uA
-
Collector-Emitter Breakdown Voltage (Vces):
600V
-
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
2.1V@15V,100A
-
Package:
SOT-227
-
Manufacturer:
IXYS
-
Series:
XPT™, GenX3™
-
Packaging:
Tube
-
Part Status:
Active
-
IGBT Type:
PT
-
Configuration:
Single
-
Voltage - Collector Emitter Breakdown (Max):
600V
-
Current - Collector (Ic) (Max):
200A
-
Power - Max:
780W
-
Vce(on) (Max) @ Vge, Ic:
2.1V @ 15V, 100A
-
Current - Collector Cutoff (Max):
50µA
-
Input Capacitance (Cies) @ Vce:
9.9nF @ 25V
-
Input:
Standard
-
NTC Thermistor:
No
-
Mounting Type:
Chassis Mount
-
Package / Case:
SOT-227-4, miniBLOC
-
Supplier Device Package:
SOT-227B
-
detail:
IGBT Module PT Single 600V 200A 780W Chassis Mount SOT-227B
