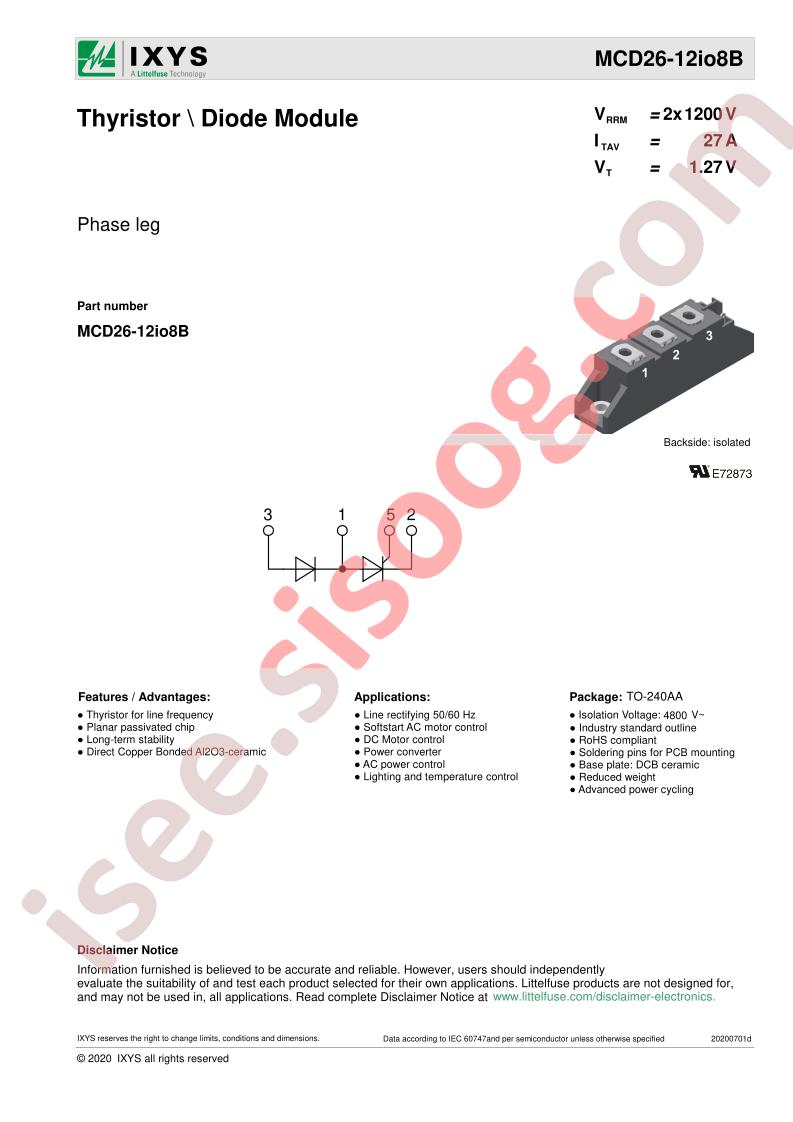

دیتاشیت MCD26-12IO8B
مشخصات دیتاشیت
| نام دیتاشیت |
MCD26-12IO8B
|
| حجم فایل |
363.83
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
6
|
مشخصات
-
Manufacturer:
IXYS
-
Series:
-
-
Packaging:
Bulk
-
Part Status:
Active
-
Structure:
Series Connection - SCR/Diode
-
Number of SCRs, Diodes:
1 SCR, 1 Diode
-
Voltage - Off State:
1.2kV
-
Current - On State (It (AV)) (Max):
32A
-
Current - On State (It (RMS)) (Max):
50A
-
Voltage - Gate Trigger (Vgt) (Max):
1.5V
-
Current - Gate Trigger (Igt) (Max):
100mA
-
Current - Non Rep. Surge 50, 60Hz (Itsm):
520A, 560A
-
Current - Hold (Ih) (Max):
200mA
-
Operating Temperature:
-40°C ~ 125°C (TJ)
-
Mounting Type:
Chassis Mount
-

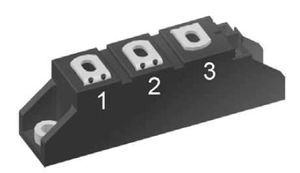

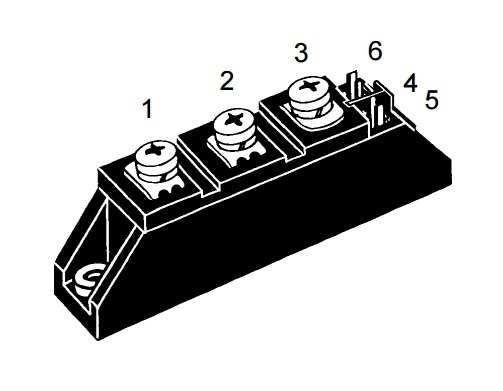

Package / Case:
TO-240AA
-
Base Part Number:
MC*26
-
detail:
SCR Module 1.2kV 50A Series Connection - SCR/Diode Chassis Mount TO-240AA
