MCC162-18IO1 دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | MCC162-18IO1 |
|---|---|
| حجم فایل | 50.083 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 6 |
دانلود دیتاشیت MCC162-18IO1 |
دانلود دیتاشیت |
|---|
سایر مستندات

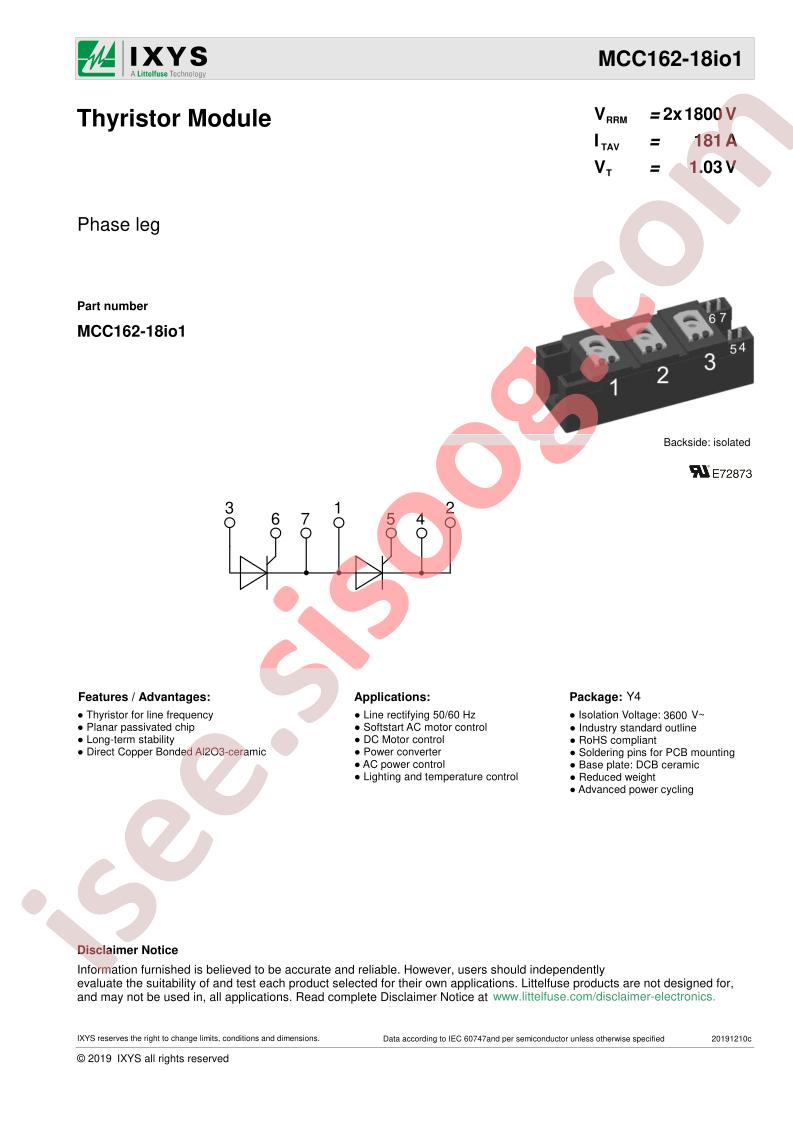

MCC162-18IO1 6 pages

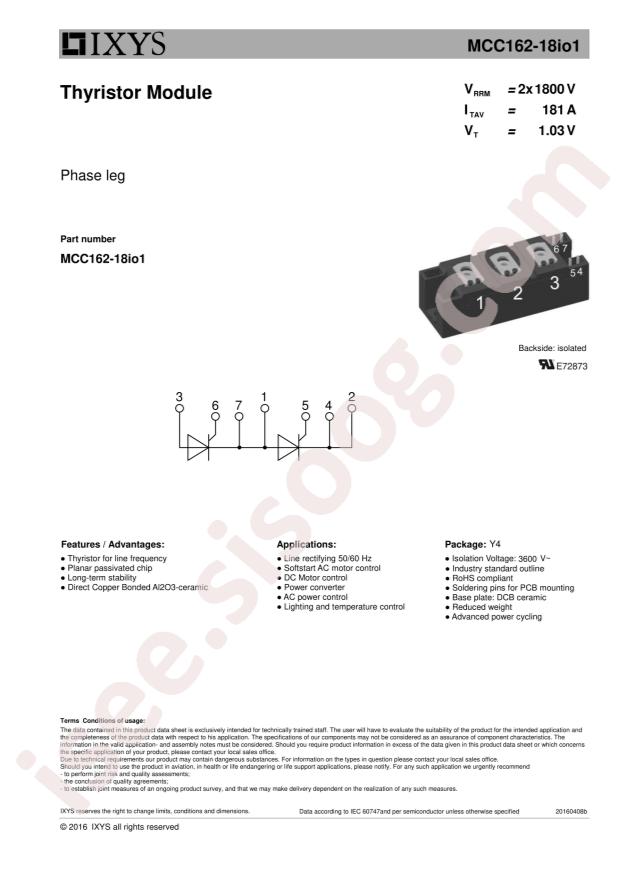

MCC162-18IO1 4 pages
مشخصات فنی
- RoHS: true
- Category: Diodes/Diodes - General Purpose
- Datasheet: Littelfuse/IXYS MCC162-18IO1
- Diode Configuration: Dual
- Reverse Voltage (Vr): 1.8kV
- Forward Voltage (Vf@If): 1.25V@300A
- Reverse Leakage Current: 300uA@1.8kV
- Average Rectified Current (Io): 181A
- Package: -
- Manufacturer: IXYS
- Series: -
- Packaging: Bulk
- Part Status: Active
- Structure: Series Connection - All SCRs
- Number of SCRs, Diodes: 2 SCRs
- Voltage - Off State: 1.8kV
- Current - On State (It (AV)) (Max): 190A
- Current - On State (It (RMS)) (Max): 300A
- Voltage - Gate Trigger (Vgt) (Max): 2.5V
- Current - Gate Trigger (Igt) (Max): 150mA
- Current - Non Rep. Surge 50, 60Hz (Itsm): 6000A, 6400A
- Current - Hold (Ih) (Max): 200mA
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: Y4-M6
- Base Part Number: MC*162
- detail: SCR Module 1.8kV 300A Series Connection - All SCRs Chassis Mount Y4-M6
