دیتاشیت GWM120-0075P3-SMD SAM

مشخصات دیتاشیت

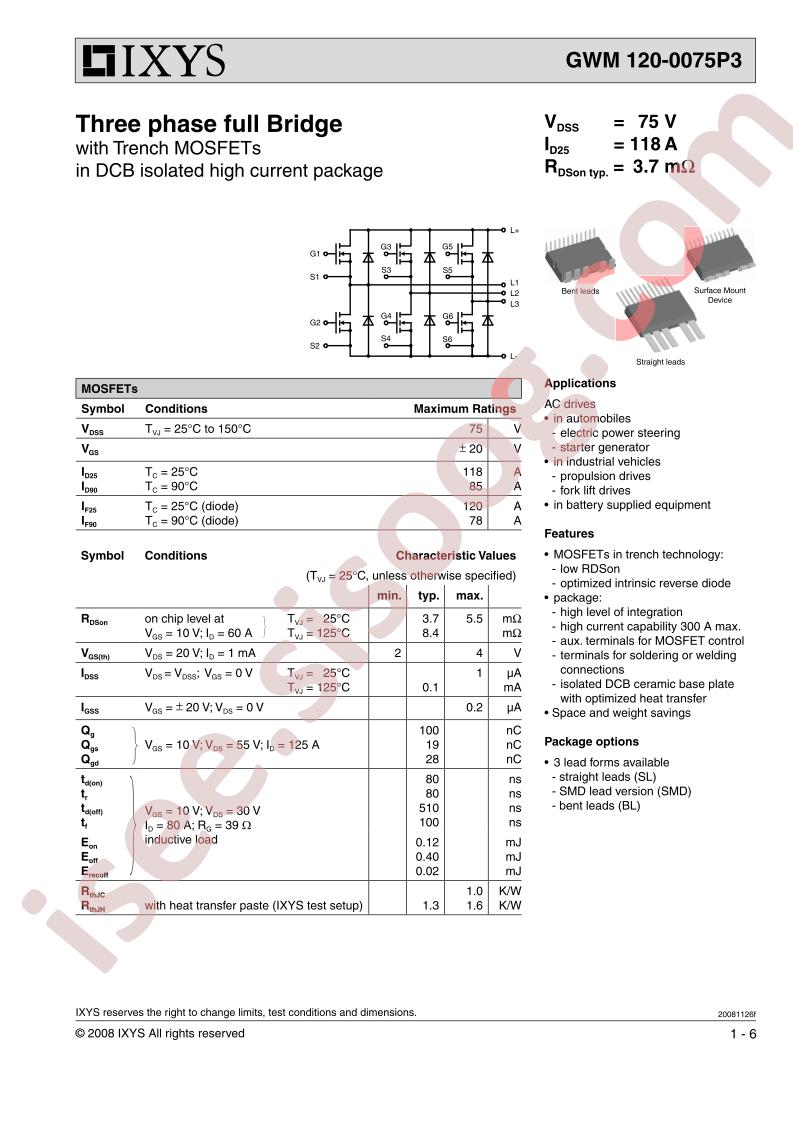

دانلود دیتاشیت GWM120-0075P3	GWM120-0075P3 Datasheet

Manufacturer: IXYS
Series: -
Packaging: Tube
Part Status: Obsolete
FET Type: 6 N-Channel (3-Phase Bridge)
FET Feature: Standard
Drain to Source Voltage (Vdss): 75V
Current - Continuous Drain (Id) @ 25°C: 118A
Rds On (Max) @ Id, Vgs: 5.5mOhm @ 60A, 10V
Vgs(th) (Max) @ Id: 4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs: 100nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds: -
Power - Max: -
Operating Temperature: -55°C ~ 175°C (TJ)
Mounting Type: Surface Mount
Package / Case: 17-SMD, Gull Wing
Supplier Device Package: ISOPLUS-DIL™
Base Part Number: GWM120
detail: Mosfet Array 6 N-Channel (3-Phase Bridge) 75V 118A Surface Mount ISOPLUS-DIL™
