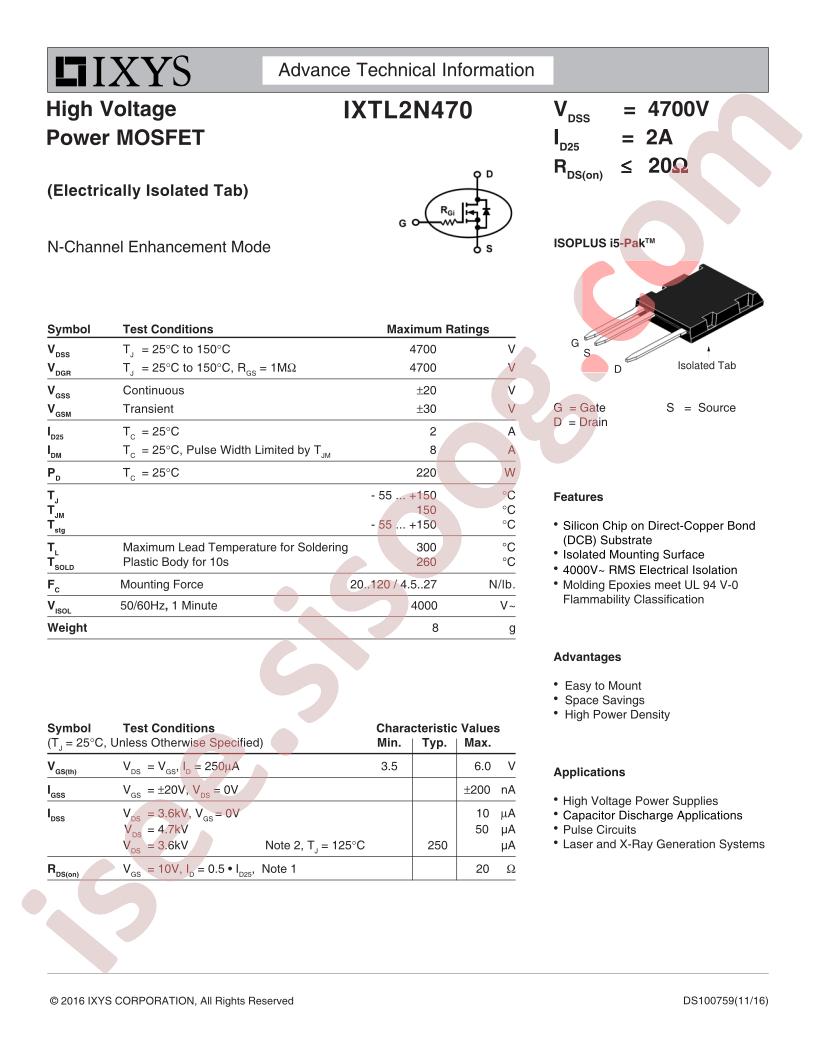

IXTL2N470 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
IXTL2N470
|
|
حجم فایل
|
163.033
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
6
|
مشخصات فنی
-
Manufacturer:
IXYS
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Active
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
4700V
-
Current - Continuous Drain (Id) @ 25°C:
2A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
10V
-
Rds On (Max) @ Id, Vgs:
20Ohm @ 1A, 10V
-
Vgs(th) (Max) @ Id:
6V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
180nC @ 10V
-
Vgs (Max):
±20V
-
Input Capacitance (Ciss) (Max) @ Vds:
6860pF @ 25V
-
FET Feature:
-
-
Power Dissipation (Max):
220W (Tc)
-
Operating Temperature:
-55°C ~ 150°C (TJ)
-
Mounting Type:
Through Hole
-
Supplier Device Package:
ISOPLUSi5-Pak™
-
Package / Case:
ISOPLUSi5-Pak™
-
detail:
N-Channel 4700V 2A (Tc) 220W (Tc) Through Hole ISOPLUSi5-Pak™
