دیتاشیت VVZB120-16IO2

مشخصات دیتاشیت

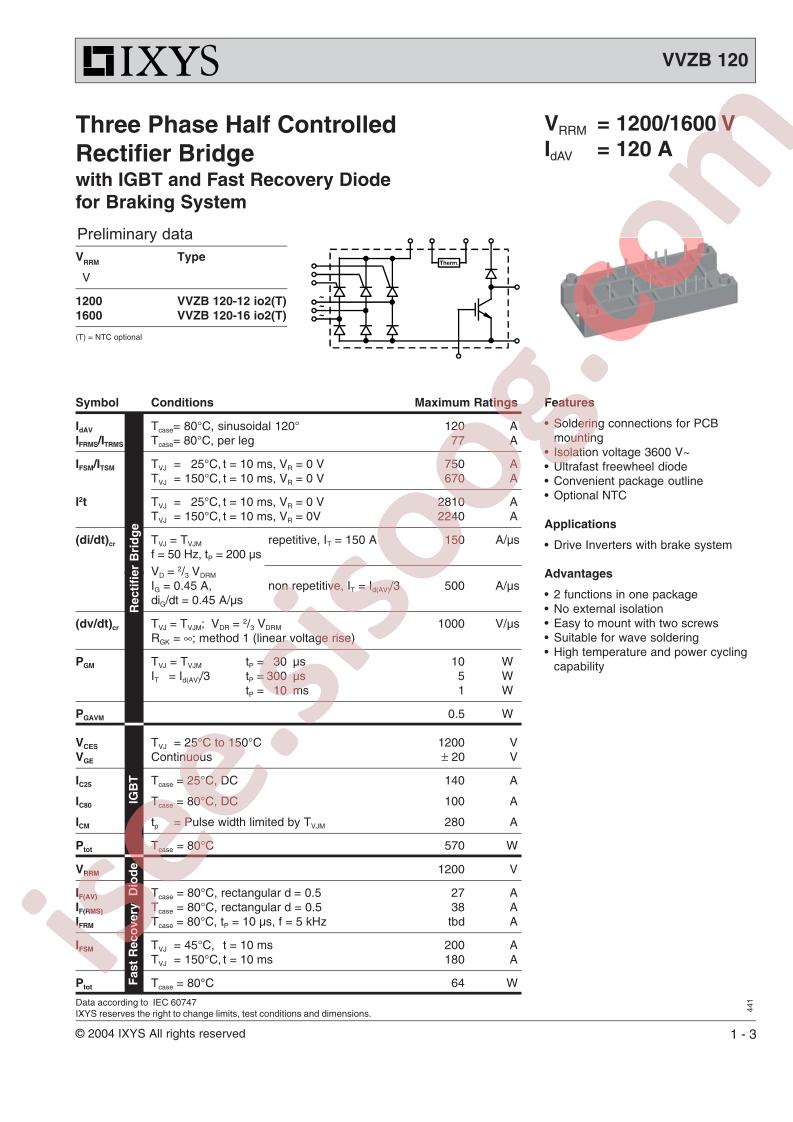

دانلود دیتاشیت VVZB120-(12,16)io2(T)	VVZB120-(12,16)io2(T) Datasheet

Manufacturer: IXYS
Series: -
Packaging: Bulk
Part Status: Active
Structure: Bridge, 3-Phase - SCRs/Diodes - IGBT with Diode
Number of SCRs, Diodes: 3 SCRs, 3 Diodes
Voltage - Off State: 1.6kV
Current - On State (It (AV)) (Max): 120A
Voltage - Gate Trigger (Vgt) (Max): 1.5V
Current - Gate Trigger (Igt) (Max): 100mA
Current - Non Rep. Surge 50, 60Hz (Itsm): 750A @ 50MHz
Current - Hold (Ih) (Max): 200mA
Operating Temperature: -40°C ~ 150°C (TJ)
Mounting Type: Chassis Mount
Package / Case: V2-PAK
Base Part Number: VVZB
detail: SCR Module 1.6kV Bridge, 3-Phase - SCRs/Diodes - IGBT with Diode Chassis Mount V2-PAK
