دیتاشیت MUBW50-12T8

MUBW50-12T8

مشخصات دیتاشیت

نام دیتاشیت MUBW50-12T8
حجم فایل 232.493 کیلوبایت
نوع فایل pdf
تعداد صفحات 7

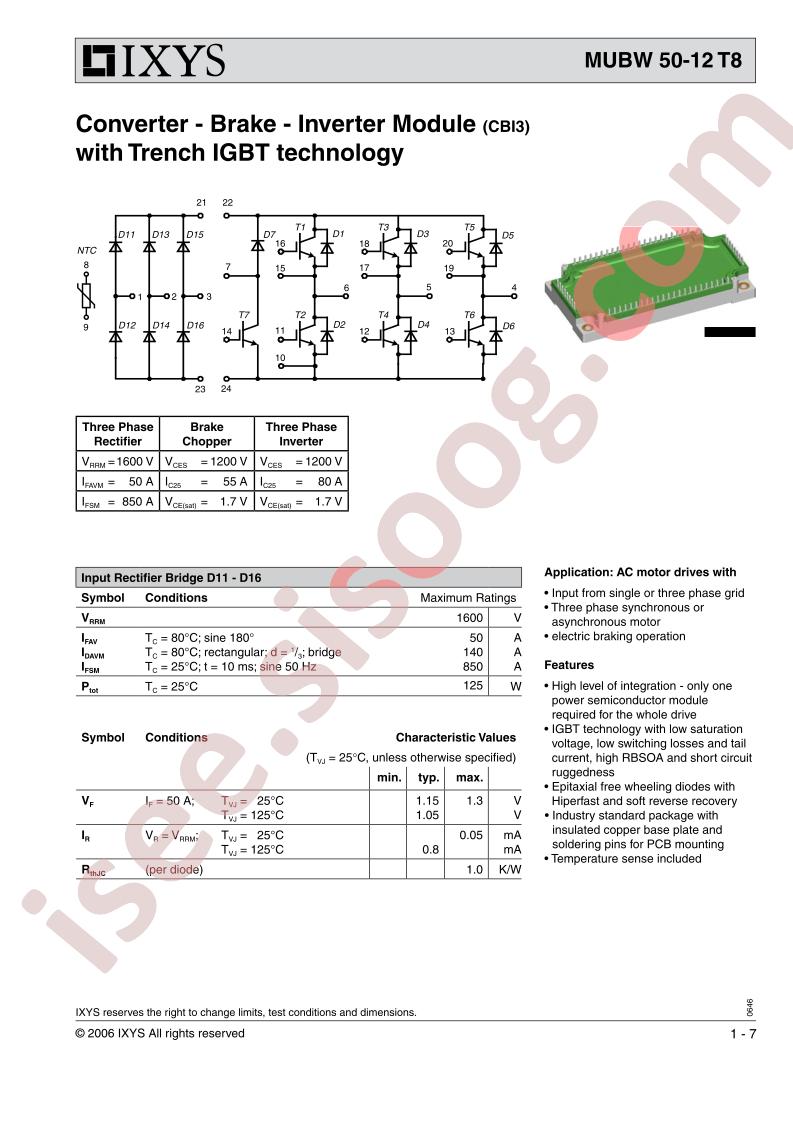

دانلود دیتاشیت MUBW50-12T8

MUBW50-12T8 Datasheet

مشخصات

  • Manufacturer: IXYS
  • Series: -
  • Packaging: Box
  • Part Status: Active
  • IGBT Type: Trench
  • Configuration: Three Phase Inverter with Brake
  • Voltage - Collector Emitter Breakdown (Max): 1200V
  • Current - Collector (Ic) (Max): 80A
  • Power - Max: 270W
  • Vce(on) (Max) @ Vge, Ic: 2.15V @ 15V, 50A
  • Current - Collector Cutoff (Max): 2.7mA
  • Input Capacitance (Cies) @ Vce: 3.5nF @ 25V
  • Input: Three Phase Bridge Rectifier
  • NTC Thermistor: Yes
  • Operating Temperature: -40°C ~ 125°C (TJ)
  • Mounting Type: Chassis Mount
  • Package / Case: E3
  • Supplier Device Package: E3
  • Base Part Number: MUBW
  • detail: IGBT Module Trench Three Phase Inverter with Brake 1200V 80A 270W Chassis Mount E3
