دیتاشیت NRF24LU1P-F32Q32-R7

NRF24LU1+ Specification

مشخصات دیتاشیت

نام دیتاشیت NRF24LU1+ Specification
حجم فایل 1878.293 کیلوبایت
نوع فایل pdf
تعداد صفحات 187

دانلود دیتاشیت NRF24LU1+ Specification

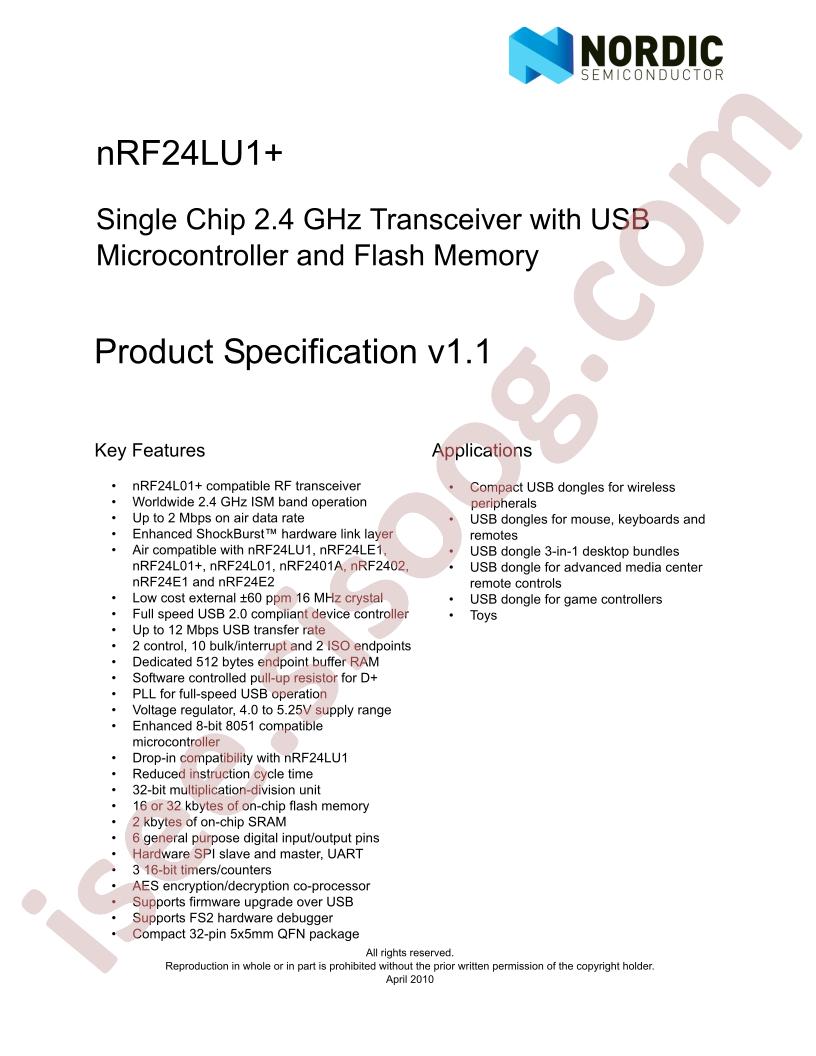

NRF24LU1+ Specification Datasheet

مشخصات

  • Manufacturer: Nordic Semiconductor ASA
  • Series: -
  • Packaging: Tape & Reel (TR)
  • Part Status: Active
  • Type: TxRx + MCU
  • RF Family/Standard: General ISM > 1GHZ
  • Protocol: -
  • Modulation: GFSK
  • Frequency: 2.4GHz
  • Data Rate (Max): 12Mbps
  • Power - Output: 0dBm
  • Sensitivity: -94dBm
  • Memory Size: 32kB Flash, 2kB SRAM
  • Serial Interfaces: SPI, UART, USB
  • GPIO: 6
  • Voltage - Supply: 4V ~ 5.25V
  • Current - Receiving: 12.9mA ~ 13.3mA
  • Current - Transmitting: 11.1mA
  • Operating Temperature: -40°C ~ 85°C
  • Mounting Type: Surface Mount
  • Package / Case: 32-VFQFN Exposed Pad
  • Supplier Device Package: 32-QFN (5x5)
  • detail: IC RF TxRx + MCU General ISM > 1GHZ 2.4GHz 32-VFQFN Exposed Pad
