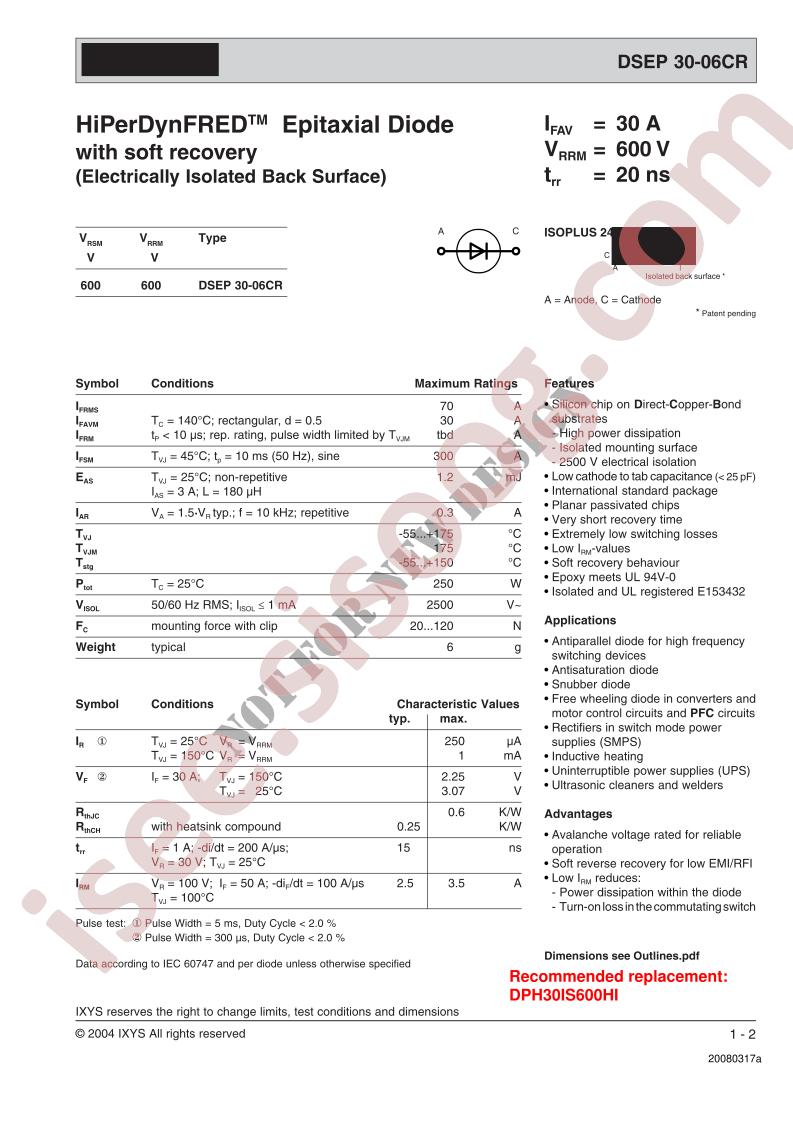

DSEP30-06CR 数据手册
其他文档
未找到其他文档！
技术规格
- Manufacturer: IXYS
- Series: HiPerDynFRED™
- Packaging: Tube
- Part Status: Obsolete
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 600V
- Current - Average Rectified (Io): 30A
- Voltage - Forward (Vf) (Max) @ If: 3.07V @ 30A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 15ns
- Current - Reverse Leakage @ Vr: 250µA @ 600V
- Capacitance @ Vr, F: -
- Mounting Type: Through Hole
- Package / Case: ISOPLUS247™
- Supplier Device Package: ISOPLUS247™
- Operating Temperature - Junction: -55°C ~ 175°C
- Base Part Number: DSEP30-06
- detail: Diode Standard 600V 30A Through Hole ISOPLUS247™
