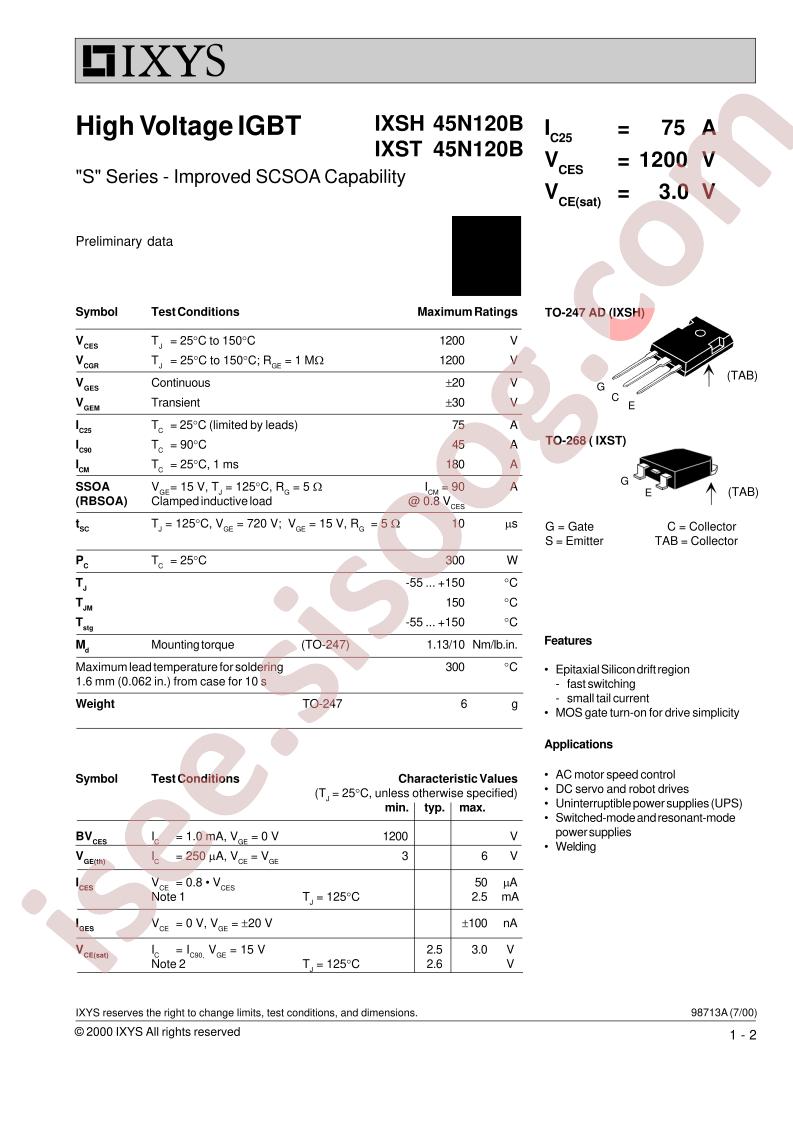

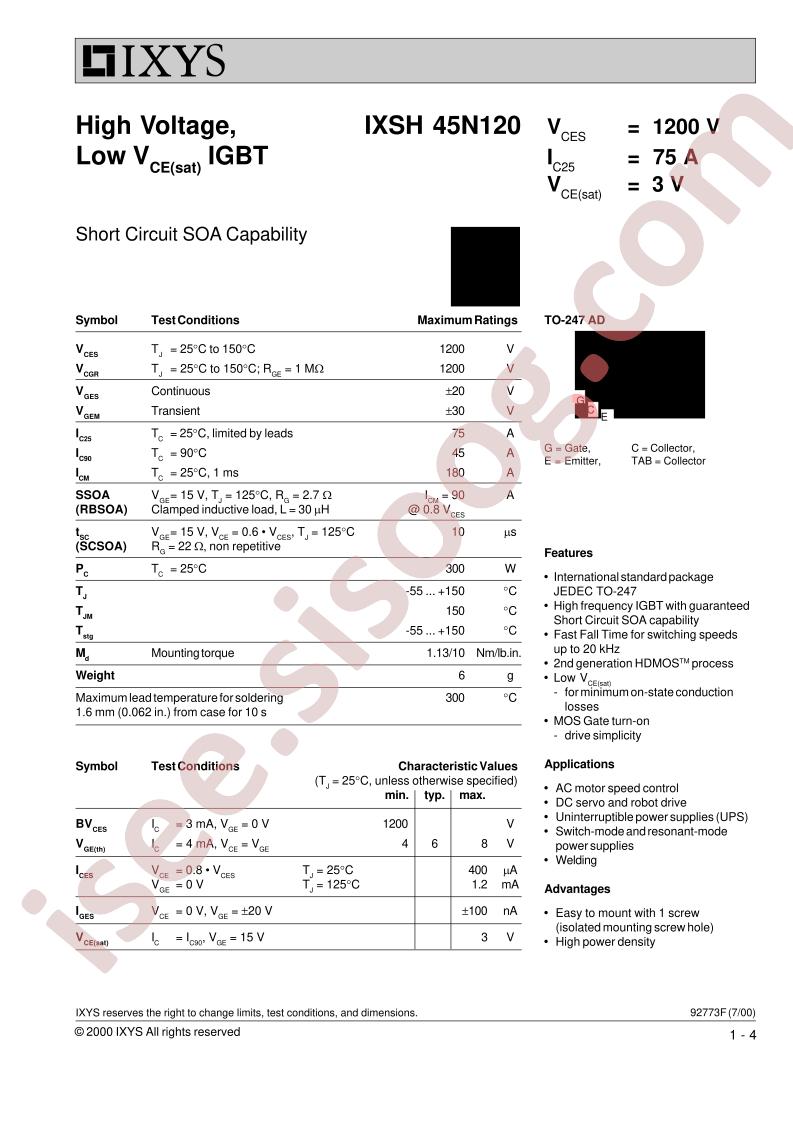

IXSH45N120 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
IXSH45N120
|
|
حجم فایل
|
93.615
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
4
|
مشخصات فنی
-
Manufacturer:
IXYS
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Obsolete
-
IGBT Type:
-
-
Voltage - Collector Emitter Breakdown (Max):
1200V
-
Current - Collector (Ic) (Max):
75A
-
Current - Collector Pulsed (Icm):
180A
-
Vce(on) (Max) @ Vge, Ic:
3V @ 15V, 45A
-
Power - Max:
300W
-
Switching Energy:
21mJ (off)
-
Input Type:
Standard
-
Gate Charge:
150nC
-
Td (on/off) @ 25°C:
80ns/400ns
-
Test Condition:
960V, 45A, 2.7Ohm, 15V
-
Operating Temperature:
-55°C ~ 150°C (TJ)
-
Mounting Type:
Through Hole
-
Package / Case:
TO-247-3
-
Supplier Device Package:
TO-247AD (IXSH)
-
detail:
IGBT 1200V 75A 300W Through Hole TO-247AD (IXSH)
