دیتاشیت IXFA7N60P3

IXFx7N60P3

مشخصات دیتاشیت

نام دیتاشیت IXFx7N60P3
حجم فایل 256.566 کیلوبایت
نوع فایل pdf
تعداد صفحات 6

دانلود دیتاشیت IXFx7N60P3

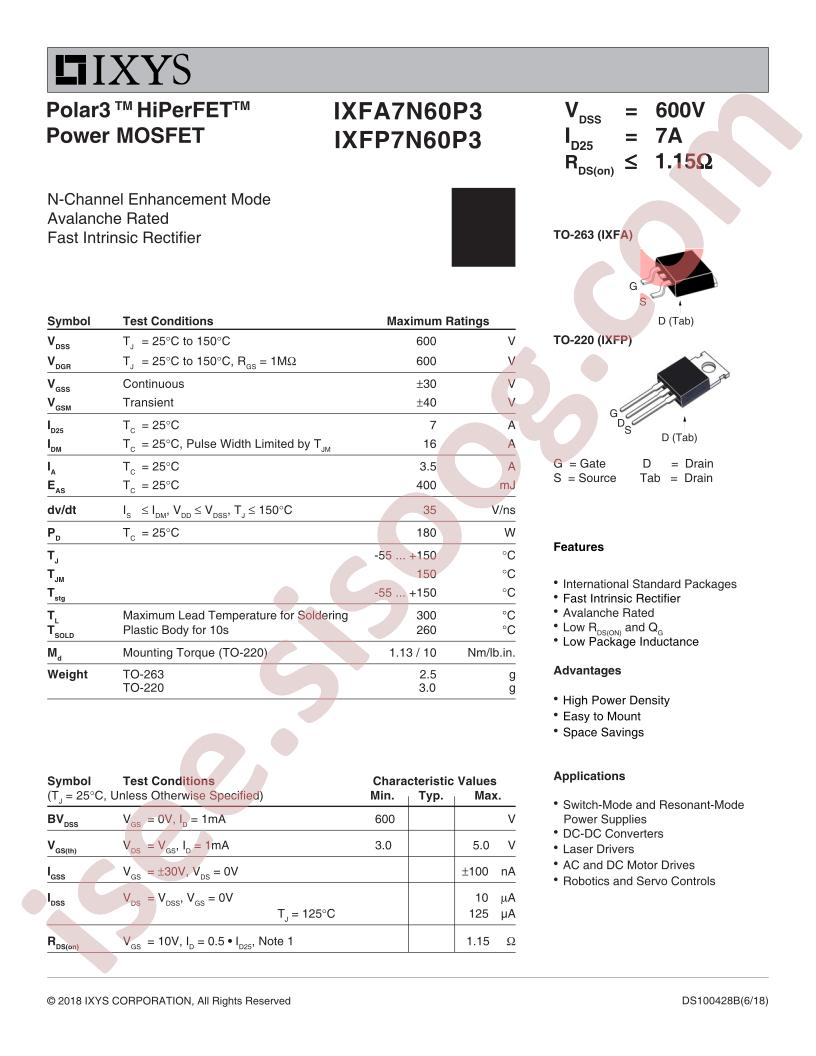

IXFx7N60P3 Datasheet

مشخصات

  • Manufacturer: IXYS
  • Series: HiPerFET™, Polar3™
  • Packaging: Tube
  • Part Status: Obsolete
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 600V
  • Current - Continuous Drain (Id) @ 25°C: 7A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Rds On (Max) @ Id, Vgs: 1.15Ohm @ 3.5A, 10V
  • Vgs(th) (Max) @ Id: 5V @ 1mA
  • Gate Charge (Qg) (Max) @ Vgs: 13.3nC @ 10V
  • Vgs (Max): ±30V
  • Input Capacitance (Ciss) (Max) @ Vds: 705pF @ 25V
  • FET Feature: -
  • Power Dissipation (Max): 180W (Tc)
  • Operating Temperature: -55°C ~ 150°C (TJ)
  • Mounting Type: Surface Mount
  • Supplier Device Package: TO-263 (IXFA)
  • Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
  • detail: N-Channel 600V 7A (Tc) 180W (Tc) Surface Mount TO-263 (IXFA)
