دیتاشیت AMC1602AR-B-B6WTDW-SPI
مشخصات دیتاشیت
نام دیتاشیت | AMC1602AR-B-B6WTDW-SPI |
---|---|
حجم فایل | 654.645 کیلوبایت |
نوع فایل | |
تعداد صفحات | 18 |
دانلود دیتاشیت AMC1602AR-B-B6WTDW-SPI |

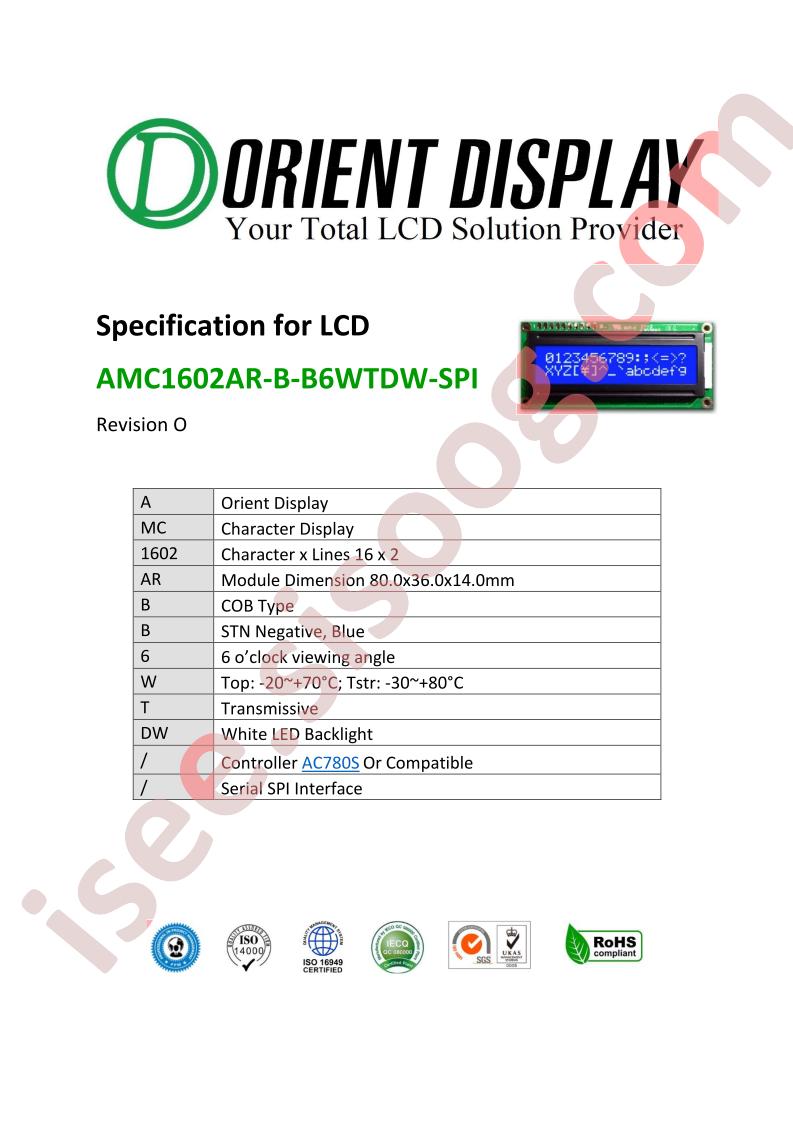

AMC1602AR-B-B6WTDW-SPI Datasheet |
---|
مشخصات
- Manufacturer: Orient Display
- Series: -
- Part Status: Active
- Number of Characters: 32
- Display Format: 16 x 2
- Character Format: 5 x 8 Dots
- Display Type: STN - Super-Twisted Nematic
- Display Mode: Transmissive
- Character Size: 5.55mm H x 2.95mm W
- Outline L x W x H: 80.00mm x 36.00mm x 14.00mm
- Viewing Area: 64.50mm L x 15.50mm W
- Backlight: LED - White
- Voltage - Supply: 4.5V ~ 5.5V
- Dot Size: 0.55mm W x 0.65mm H
- Interface: SPI
- Controller Type: AC780S
- Operating Temperature: -20°C ~ 70°C
- Text Color: White
- Background Color: Blue
- detail: Character LCD Display Module Transmissive 5 x 8 Dots STN - Super-Twisted Nematic LED - White SPI 80.00mm x 36.00mm x 14.00mm
