دیتاشیت AMC2004AR-B-Y6WFDY-I2C

مشخصات دیتاشیت

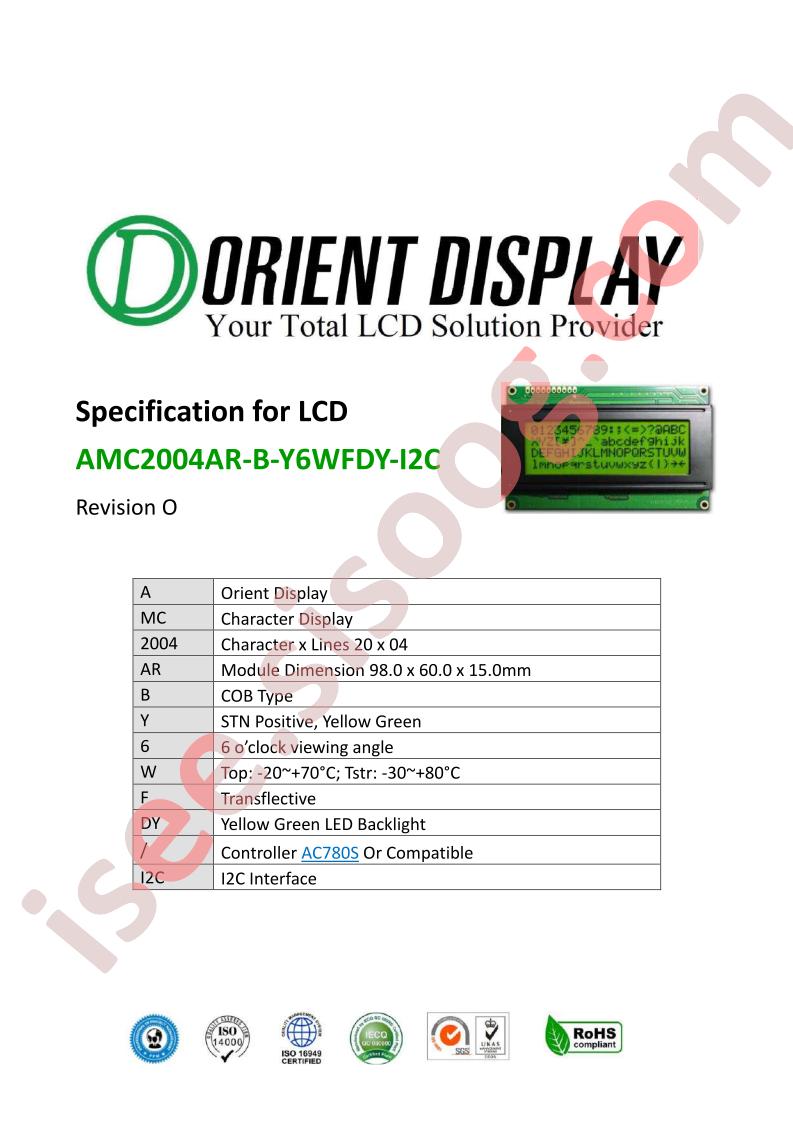

دانلود دیتاشیت AMC2004AR-B-Y6WFDY-I2C	AMC2004AR-B-Y6WFDY-I2C Datasheet

Manufacturer: Orient Display
Series: -
Part Status: Active
Number of Characters: 80
Display Format: 20 x 4
Character Format: 5 x 8 Dots
Display Type: STN - Super-Twisted Nematic
Display Mode: Transflective
Character Size: 4.75mm H x 2.95mm W
Outline L x W x H: 98.00mm x 60.00mm x 13.50mm
Viewing Area: 76.00mm L x 25.20mm W
Backlight: LED - Yellow/Green
Voltage - Supply: 4.5V ~ 5.5V
Dot Size: 0.55mm W x 0.55mm H
Interface: I²C
Controller Type: AC780S
Operating Temperature: -20°C ~ 70°C
Text Color: Dark Blue
Background Color: Yellow/Green
detail: Character LCD Display Module Transflective 5 x 8 Dots STN - Super-Twisted Nematic LED - Yellow/Green I²C 98.00mm x 60.00mm x 13.50mm
