دیتاشیت AMC0802BR-B-Y6WFDY-I2C

مشخصات دیتاشیت

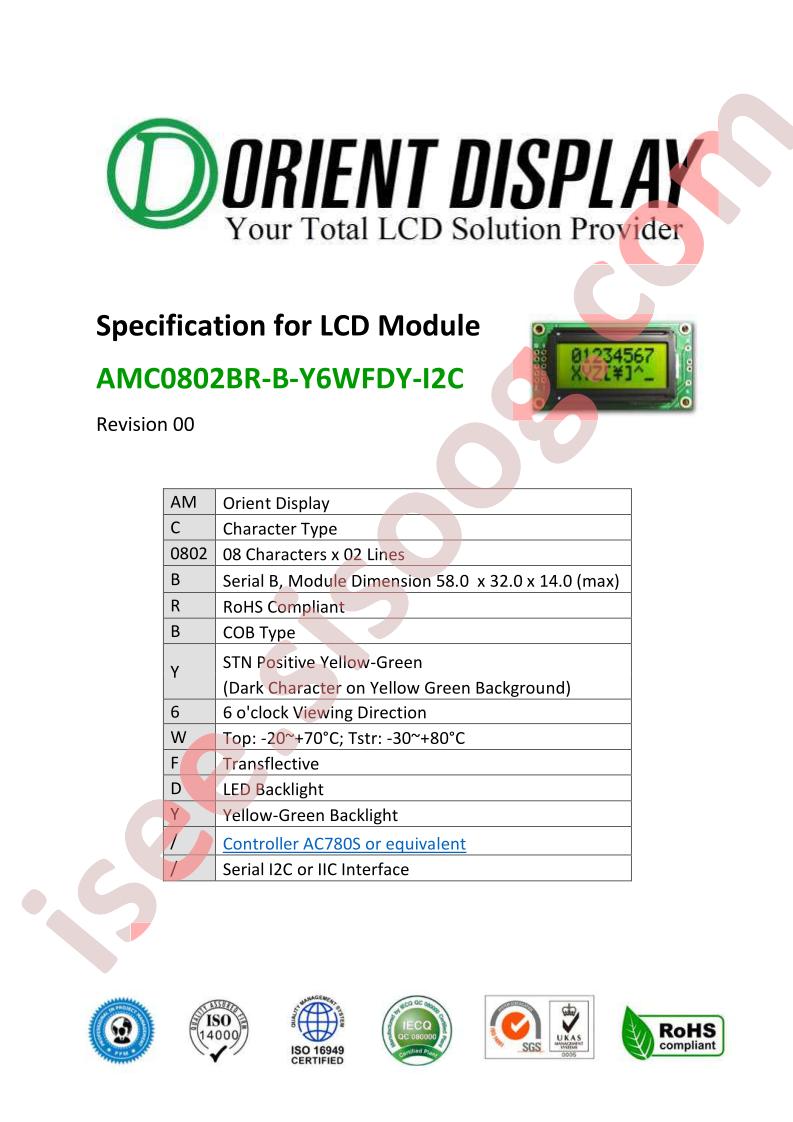

دانلود دیتاشیت AMC0802BR-B-Y6WFDY-I2C Datasheet	AMC0802BR-B-Y6WFDY-I2C Datasheet Datasheet

Manufacturer: Orient Display
Series: -
Part Status: Active
Number of Characters: 16
Display Format: 8 x 2
Character Format: 5 x 8 Dots
Display Type: STN - Super-Twisted Nematic
Display Mode: Transflective
Character Size: 5.56mm H x 2.96mm W
Outline L x W x H: 58.00mm x 32.00mm x 14.00mm
Viewing Area: 38.00mm L x 16.00mm W
Backlight: LED - Yellow/Green
Voltage - Supply: 4.5V ~ 5.5V
Dot Size: 0.56mm W x 0.66mm H
Interface: I²C
Controller Type: AC780S
Operating Temperature: -20°C ~ 70°C
Text Color: Dark Blue
Background Color: Yellow/Green
detail: Character LCD Display Module Transflective 5 x 8 Dots STN - Super-Twisted Nematic LED - Yellow/Green I²C 58.00mm x 32.00mm x 14.00mm
