دیتاشیت AMC0802BR-B-G6WFDW
مشخصات دیتاشیت
نام دیتاشیت | AMC0802BR-B-G6WFDW Datasheet |
---|---|
حجم فایل | 448.214 کیلوبایت |
نوع فایل | |
تعداد صفحات | 22 |

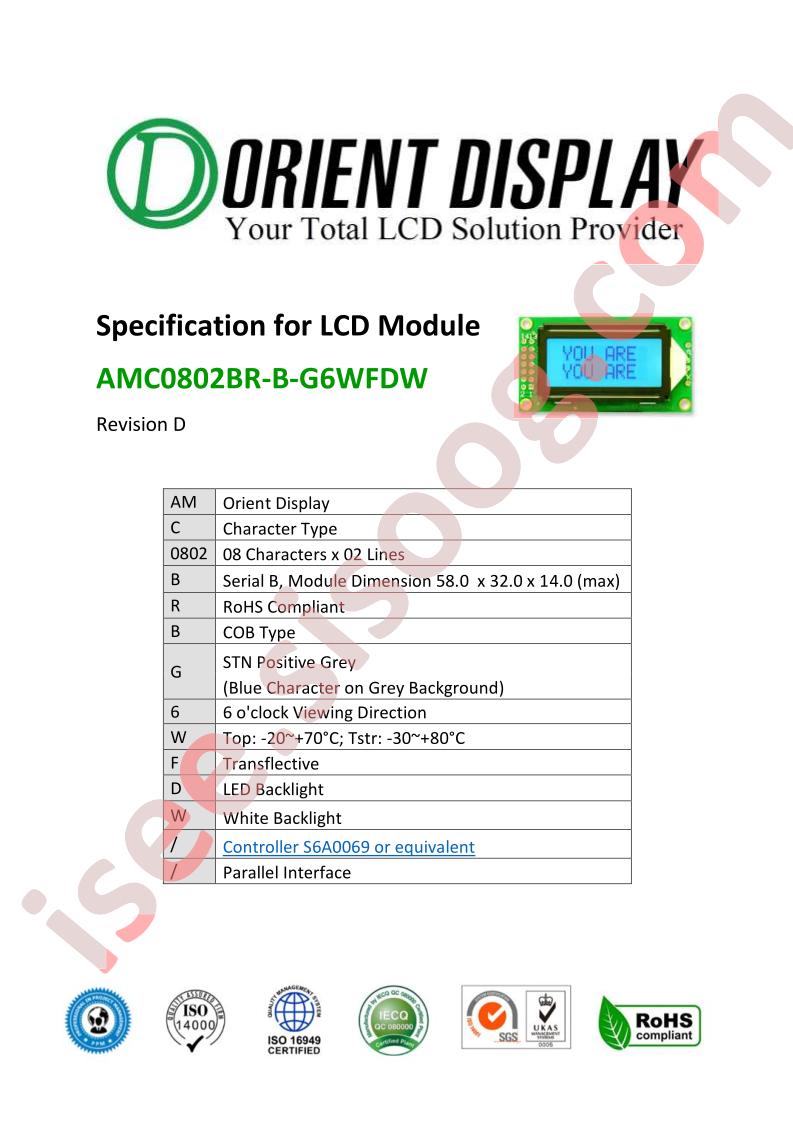

دانلود دیتاشیت AMC0802BR-B-G6WFDW Datasheet |
AMC0802BR-B-G6WFDW Datasheet Datasheet |
---|
مشخصات
- Manufacturer: Orient Display
- Series: -
- Part Status: Active
- Number of Characters: 16
- Display Format: 8 x 2
- Character Format: 5 x 8 Dots
- Display Type: STN - Super-Twisted Nematic
- Display Mode: Transflective
- Character Size: 5.56mm H x 2.96mm W
- Outline L x W x H: 58.00mm x 32.00mm x 14.00mm
- Viewing Area: 38.00mm L x 16.00mm W
- Backlight: LED - White
- Voltage - Supply: 4.5V ~ 5.5V
- Dot Size: 0.56mm W x 0.66mm H
- Interface: Parallel, 8-Bit
- Controller Type: S6A0069
- Operating Temperature: -20°C ~ 70°C
- Text Color: Blue
- Background Color: Gray
- detail: Character LCD Display Module Transflective 5 x 8 Dots STN - Super-Twisted Nematic LED - White Parallel, 8-Bit 58.00mm x 32.00mm x 14.00mm
