NRF24L01P-R7 Datasheet

NRF24L01P-R7

Datasheet specifications

Datasheet's name NRF24L01P-R7
File size 54.663 KB
File type pdf
Number of pages 78

Download Datasheet NRF24L01P-R7

Download Datasheet

Other documentations

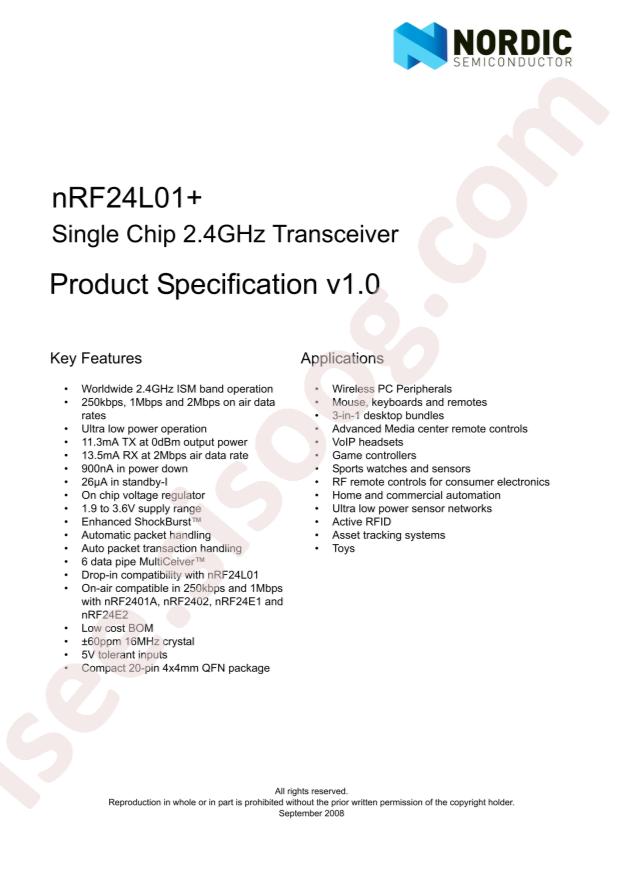

NRF24L01+ Specification 78 pages

Technical specifications

  • RoHS: true
  • Category: Radio Frequency Chip/Antenna/RF Transceiver ICs
  • Datasheet: Nordic Semicon NRF24L01P-R7
  • Package: VQFN-20-EP(4x4)
  • Manufacturer: Nordic Semicon
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Type: TxRx Only
  • RF Family/Standard: General ISM > 1GHZ
  • Protocol: -
  • Modulation: GFSK
  • Frequency: 2.4GHz
  • Data Rate (Max): 2Mbps
  • Power - Output: 0dBm
  • Sensitivity: -94dBm
  • Memory Size: -
  • Serial Interfaces: SPI
  • Voltage - Supply: 1.9V ~ 3.6V
  • Current - Receiving: 12.6mA ~ 13.5mA
  • Current - Transmitting: 7mA ~ 11.3mA
  • Operating Temperature: -40°C ~ 85°C
  • Mounting Type: Surface Mount
  • Package / Case: 20-VFQFN Exposed Pad
  • Supplier Device Package: 20-QFN (4x4)
  • detail: IC RF TxRx Only General ISM > 1GHZ 2.4GHz 20-VFQFN Exposed Pad
