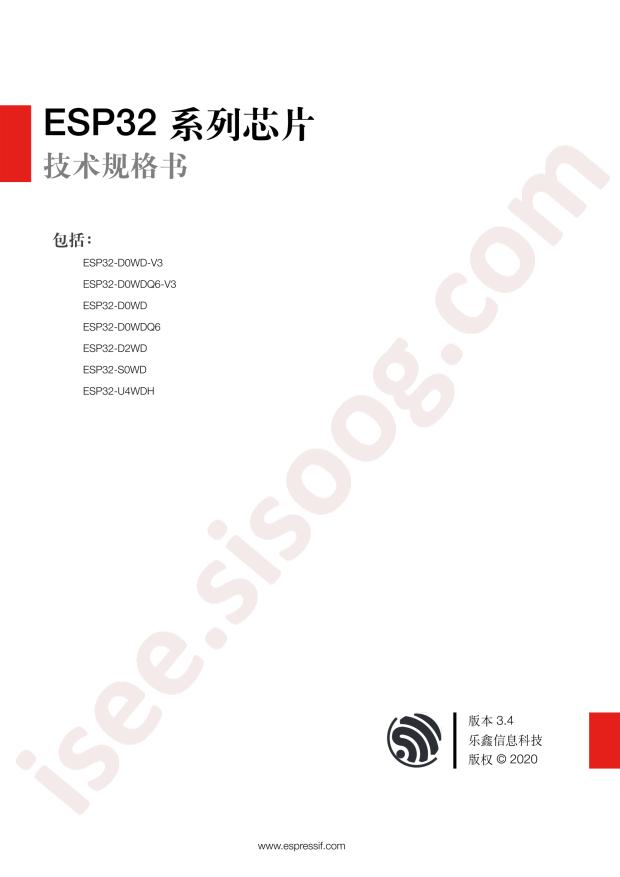

دیتاشیت ESP32-D0WD-V3
مشخصات دیتاشیت
| نام دیتاشیت |
ESP32-D0WD-V3
|
| حجم فایل |
26.332
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
61
|
مشخصات فنی
-
RoHS:
true
-
Category:
Radio Frequency Chip/Antenna/RF Transceiver ICs
-
Datasheet:
Espressif Systems ESP32-D0WD-V3
-
Package:
QFN-48-EP(5x5)
-
Manufacturer:
Espressif Systems
-
Series:
ESP32
-
Part Status:
Active
-
Type:
TxRx + MCU
-
RF Family/Standard:
Bluetooth, WiFi
-
Protocol:
802.11b/g/n, Bluetooth 4.2
-
Modulation:
8DPSK, DSSS, DQPSK, OFDM
-
Frequency:
2.412GHz ~ 2.484GHz
-
Data Rate (Max):
150Mbps
-
Power - Output:
20.5dBm
-
Sensitivity:
-97dBm
-
Memory Size:
448kB ROM, 520kB SRAM
-
Serial Interfaces:
ADC, I²C, I²S, SDIO, SPI, PWM, UART
-
GPIO:
34
-
Voltage - Supply:
2.3V ~ 3.6V
-
Current - Receiving:
95mA ~ 100mA
-
Current - Transmitting:
130mA ~ 240mA
-
Operating Temperature:
-40°C ~ 125°C
-
Mounting Type:
Surface Mount
-
Package / Case:
48-VFQFN Exposed Pad
-
Supplier Device Package:
48-QFN (5x5)
-
detail:
IC RF TxRx + MCU Bluetooth, WiFi 802.11b/g/n, Bluetooth 4.2 2.412GHz ~ 2.484GHz 48-VFQFN Exposed Pad
