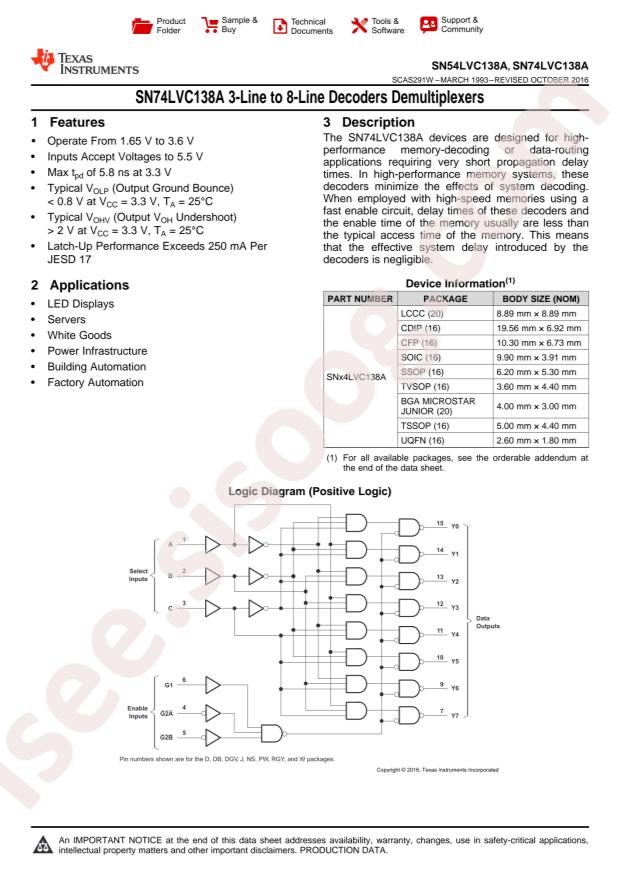

SN74LVC138APWR دیتاشیت

SN74LVC138APWR

مشخصات دیتاشیت

نام دیتاشیت SN74LVC138APWR
حجم فایل 86.118 کیلوبایت
نوع فایل pdf
تعداد صفحات 39

دانلود دیتاشیت SN74LVC138APWR

دانلود دیتاشیت

سایر مستندات

SN(54,74)LVC138A 39 pages

مشخصات فنی

  • RoHS: true
  • Type: Decoder/Demultiplexers
  • Category: Logic ICs/Signal Switches / Encoders & Decoders / Multiplexers
  • Datasheet: Texas Instruments SN74LVC138APWR
  • Sink Current: 24mA
  • Source Current: 24mA
  • Supply Voltage: 1.65V~3.6V
  • Operating temperature: -40°C~+85°C
  • Voltage Supply Source: Single supply
  • Package: TSSOP-16
  • Manufacturer: Texas Instruments
  • Packaging: Cut Tape (CT)
  • Base Part Number: SN74LVC13
  • Package / Case: 16-TSSOP (0.173", 4.40mm Width)
  • Circuit: 1 x 3:8
  • Voltage - Supply: 1.65V ~ 3.6V
  • Series: 74LVC
  • Supplier Device Package: 16-TSSOP
  • Mounting Type: Surface Mount
  • Independent Circuits: 1
  • Current - Output High, Low: 24mA, 24mA
  • Part Status: Active
  • detail: Decoder/Demultiplexer 1 x 3:8 16-TSSOP
