SN74AUP1G32DSFR دیتاشیت

SN74AUP1G32DSFR

مشخصات دیتاشیت

نام دیتاشیت SN74AUP1G32DSFR
حجم فایل 73.138 کیلوبایت
نوع فایل pdf
تعداد صفحات 44

دانلود دیتاشیت SN74AUP1G32DSFR

دانلود دیتاشیت

سایر مستندات

Logic Guide 20 pages

SN74AUP1G32 43 pages

مشخصات فنی

  • RoHS: true
  • Series: 74AUP
  • Category: Logic ICs/Gates
  • Datasheet: Texas Instruments SN74AUP1G32DSFR
  • Sink Current: 4mA
  • Source Current: 4mA
  • Supply Voltage: 0.8V~3.6V
  • Logic Gate Type: ORGate
  • Number of Channels: 1
  • Low Level Range (VIL): 0.7V~0.9V
  • Operating Temperature: -40°C~+85°C
  • High Level Range (VIH): 1.6V~2V
  • Propagation Delay Time: 6.4ns@3.3V,30pF
  • Quiescent Current (Max): 500nA

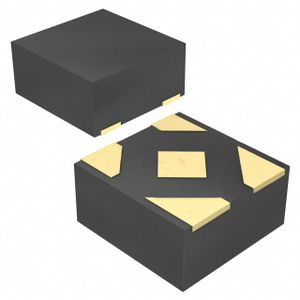

  • Package: DFN-6(1x1)
  • Manufacturer: Texas Instruments
  • Packaging: Cut Tape (CT)
  • Max Propagation Delay @ V, Max CL: 6.4ns @ 3.3V, 30pF
  • Package / Case: 6-XFDFN
  • Voltage - Supply: 0.8V ~ 3.6V
  • Base Part Number: SN74AUP
  • Logic Level - Low: 0.7V ~ 0.9V
  • Mounting Type: Surface Mount
  • Supplier Device Package: 6-SON (1x1)
  • Current - Quiescent (Max): 500nA
  • Logic Level - High: 1.6V ~ 2V
  • Logic Type: OR Gate
  • Number of Circuits: 1
  • Features: -
  • Current - Output High, Low: 4mA, 4mA
  • Part Status: Active
  • Number of Inputs: 2
  • detail: OR Gate IC 1 Channel 6-SON (1x1)
