- دیتاشیت SN74LVC1G3157DRLR
SN74LVC1G3157DRLR دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | SN74LVC1G3157DRLR |
|---|---|
| حجم فایل | 68.501 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 46 |
دانلود دیتاشیت SN74LVC1G3157DRLR |
دانلود دیتاشیت |
|---|
سایر مستندات

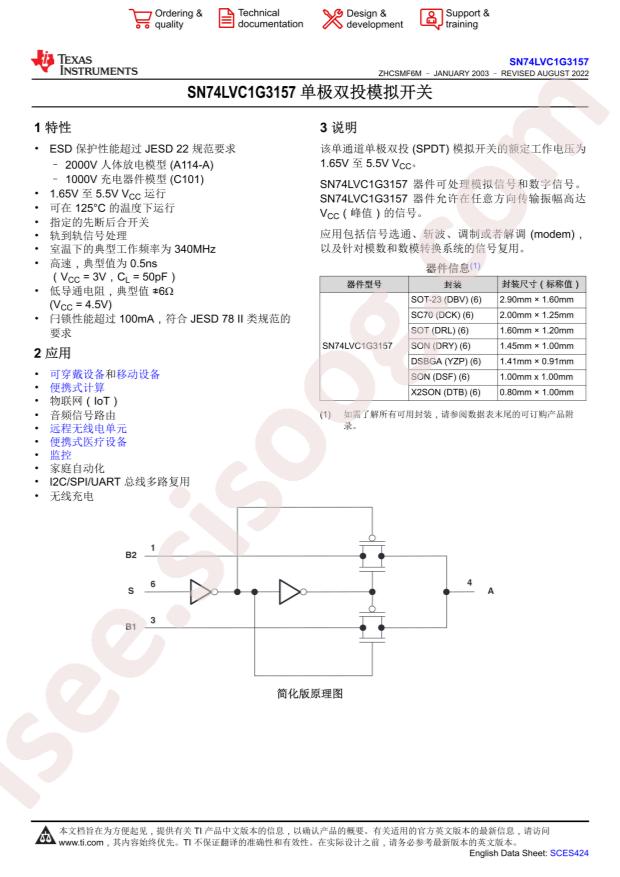

SN74LVC1G3157 Datasheet 45 pages
مشخصات فنی
- RoHS: true
- Category: Communication Interface Chip/UART/485/232/Analog Switches / Multiplexers
- Datasheet: Texas Instruments SN74LVC1G3157DRLR
- Turn-on time: 5.7ns
- Turn-off time: 3.8ns
- Supply Voltage: 1.65V~5.5V
- Switch Circuit: SPDT(SPDT)
- Number of Channels: 1
- On-State Resistance (Max): 15Ω
- Package: SOT-5x3
- Manufacturer: Texas Instruments
- Package / Case: SOT-563, SOT-666
- Series: -
- Switch Time (Ton, Toff) (Max): 5.7ns, 3.8ns
- Supplier Device Package: 6-SOT
- Channel Capacitance (CS(off), CD(off)): 5.2pF
- Number of Circuits: 1
- Channel-to-Channel Matching (ΔRon): 100mOhm
- -3db Bandwidth: 340MHz
- Charge Injection: 7pC
- Multiplexer/Demultiplexer Circuit: 2:1
- Packaging: Cut Tape (CT)
- Voltage - Supply, Single (V+): 1.65V ~ 5.5V
- Voltage - Supply, Dual (V±): -
- Base Part Number: SN74LVC1G
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Current - Leakage (IS(off)) (Max): 1µA
- Crosstalk: -54dB @ 10MHz
- Part Status: Active
- detail: 1 Circuit IC Switch 2:1 15Ohm 6-SOT
