دیتاشیت TS5A9411DCKR

TS5A9411

مشخصات دیتاشیت

نام دیتاشیت TS5A9411
حجم فایل 1019.704 کیلوبایت
نوع فایل pdf
تعداد صفحات 24

دانلود دیتاشیت TS5A9411

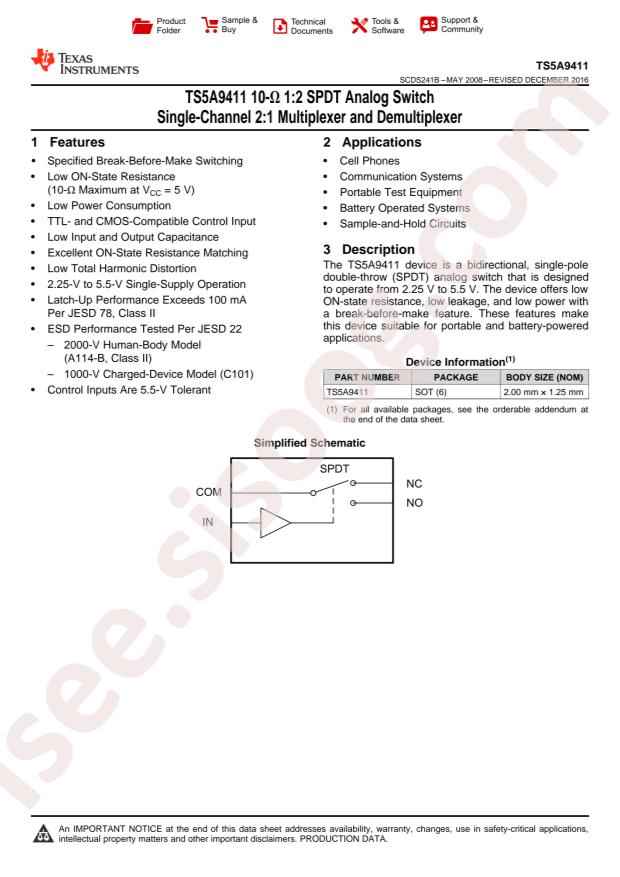

TS5A9411 Datasheet

مشخصات

  • Manufacturer: Texas Instruments
  • Package / Case: 6-TSSOP, SC-88, SOT-363
  • Series: -
  • Switch Time (Ton, Toff) (Max): 9ns, 7ns
  • Supplier Device Package: SC-70-6
  • Channel Capacitance (CS(off), CD(off)): 3.5pF
  • Number of Circuits: 1
  • Channel-to-Channel Matching (ΔRon): 30mOhm
  • -3db Bandwidth: 100MHz
  • Charge Injection: 12.5pC
  • Multiplexer/Demultiplexer Circuit: 2:1
  • Packaging: Cut Tape (CT)
  • Voltage - Supply, Single (V+): 2.25V ~ 5.5V
  • Voltage - Supply, Dual (V±): -
  • Base Part Number: TS5A941
  • On-State Resistance (Max): 9Ohm
  • Operating Temperature: -40°C ~ 85°C (TA)
  • Mounting Type: Surface Mount
  • Current - Leakage (IS(off)) (Max): 500pA
  • Crosstalk: -85dB @ 1MHz
  • Part Status: Active
  • Switch Circuit: SPDT
  • detail: 1 Circuit IC Switch 2:1 9Ohm SC-70-6
