دیتاشیت L78L05ACD13TR

L78L Datasheet

مشخصات دیتاشیت

نام دیتاشیت L78L Datasheet
حجم فایل 1631.68 کیلوبایت
نوع فایل pdf
تعداد صفحات 45

دانلود دیتاشیت L78L Datasheet

L78L Datasheet Datasheet

مشخصات

  • Manufacturer: STMicroelectronics
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Output Configuration: Positive
  • Output Type: Fixed
  • Number of Regulators: 1
  • Voltage - Input (Max): 30V
  • Voltage - Output (Min/Fixed): 5V
  • Voltage - Output (Max): -
  • Voltage Dropout (Max): -
  • Current - Output: 100mA
  • Current - Quiescent (Iq): 5.5mA
  • Current - Supply (Max): 6mA
  • PSRR: 49dB (120Hz)
  • Control Features: -
  • Protection Features: Over Current, Over Temperature, Short Circuit
  • Operating Temperature: 0°C ~ 125°C
  • Mounting Type: Surface Mount

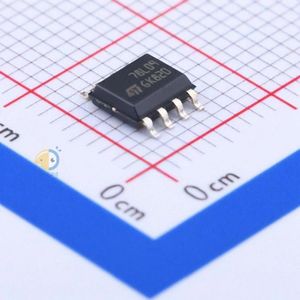

  • Package / Case: 8-SOIC (0.154", 3.90mm Width)
  • Supplier Device Package: 8-SO
  • Base Part Number: L78L05
  • detail: Linear Voltage Regulator IC 1 Output 100mA 8-SO
