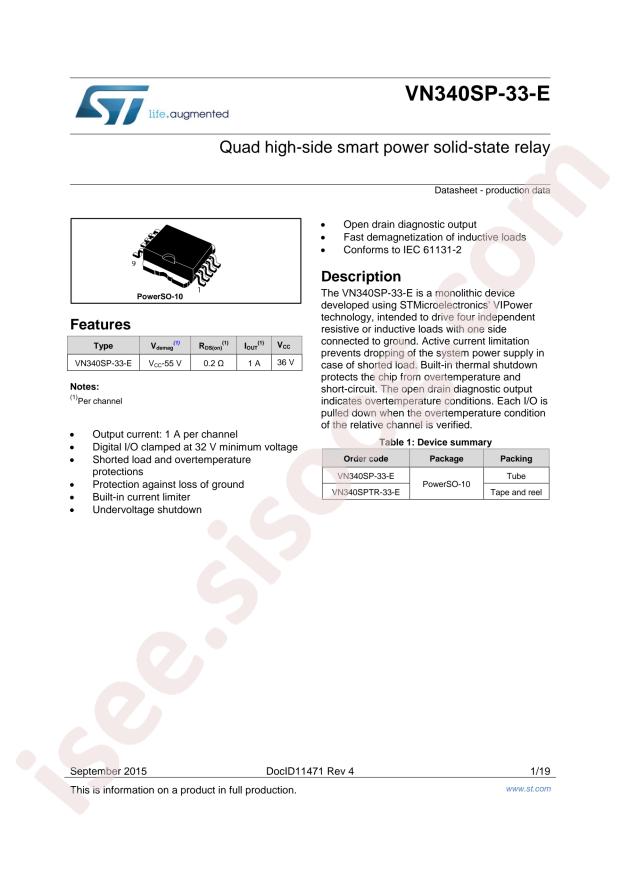

VN340SPTR-33-E دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | VN340SPTR-33-E |
|---|---|
| حجم فایل | 58.454 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 19 |
دانلود دیتاشیت VN340SPTR-33-E |
دانلود دیتاشیت |
|---|
سایر مستندات
VN340SP-33-E 19 pages
VN340SPTR-33-E 16 pages
مشخصات فنی
- RoHS: true
- Category: Power Supply Chip/Power Distribution Switches
- Datasheet: STMicroelectronics VN340SPTR-33-E
- Input Voltage: 10V~36V
- Output Current: 1A
- Number of Outputs: 4
- Resistor On-State: 200mΩ
- Operating Temperature -: -40°C~+125°C
- Package: PowerSO-10
- Manufacturer: STMicroelectronics
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Switch Type: General Purpose
- Ratio - Input:Output: 1:1
- Output Configuration: High Side
- Output Type: N-Channel
- Interface: On/Off
- Voltage - Load: 10V ~ 36V
- Voltage - Supply (Vcc/Vdd): Not Required
- Current - Output (Max): 1A
- Rds On (Typ): 200mOhm (Max)
- Input Type: Non-Inverting
- Features: Status Flag
- Fault Protection: Current Limiting (Fixed), Over Temperature
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 10-PowerSO
- Package / Case: PowerSO-10 Exposed Bottom Pad
- Base Part Number: VN340
- detail: Power Switch/Driver 1:1 N-Channel 1A 10-PowerSO
