UCC284DP-5 数据手册
其他文档
UCC284-x,384-x 19 pages
技术规格
- RoHS: true
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)

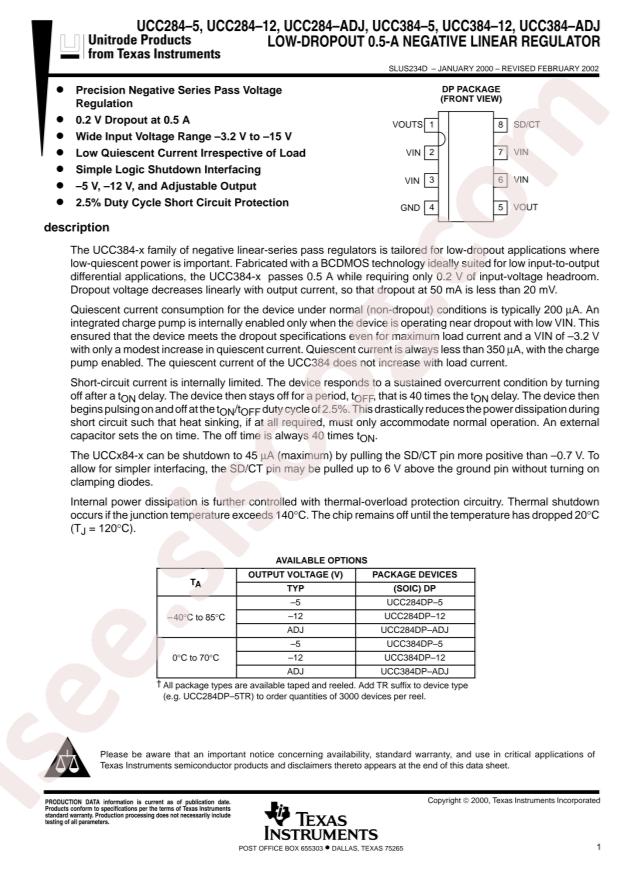

- Datasheet: Texas Instruments UCC284DP-5
- Output Current: 500mA
- Output Voltage: 5V
- Dropout Voltage: 0.5V@(500mA)
- Output Polarity: Negative
- Number of Outputs: 1
- Maximum Input Voltage: 15V
- Operating Temperature: -40°C~+85°C
- Quiescent Current (Ground Current): 250uA
- Package: SOP-8
- Manufacturer: Texas Instruments
- Part Status: Active
- Current - Output: 500mA
- Series: -
- Package / Case: 8-SOIC (0.154", 3.90mm Width)
- Voltage - Output (Min/Fixed): -5V
- Control Features: Enable
- Number of Regulators: 1
- Mounting Type: Surface Mount
- Voltage - Output (Max): -
- Base Part Number: UCC284
- Protection Features: Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
- PSRR: -
- Voltage Dropout (Max): 0.5V @ 500mA
- Packaging: Tube
- Output Type: Fixed
- Output Configuration: Negative
- Supplier Device Package: 8-SOIC
- Voltage - Input (Max): -15V
- Current - Quiescent (Iq): 250µA
- detail: Linear Voltage Regulator IC 1 Output 500mA 8-SOIC
