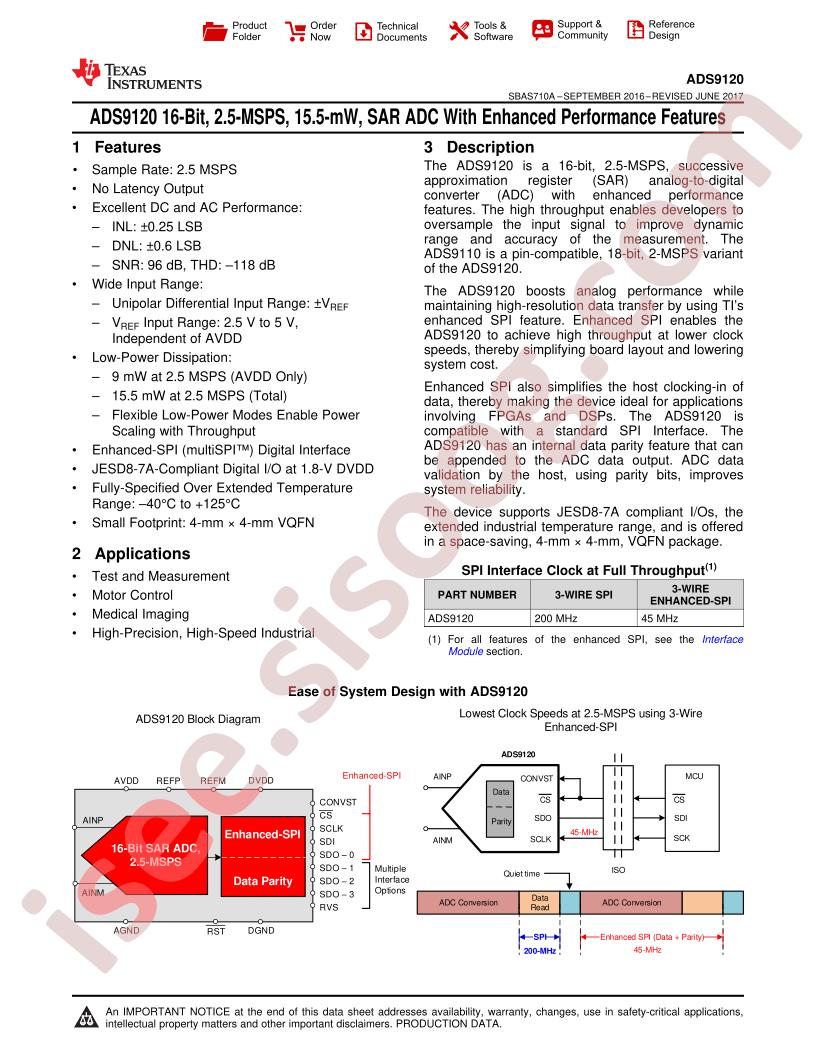

ADS9120 Datasheet دیتاشیت

ADS9120 Datasheet

مشخصات دیتاشیت

نام دیتاشیت ADS9120 Datasheet
حجم فایل 3211.736 کیلوبایت
نوع فایل pdf
تعداد صفحات 68

مشاهده دیتاشیت ADS9120 Datasheet

دانلود دیتاشیت

سایر مستندات

ADS9120IRGET 64 pages

مشخصات فنی

  • RoHS: true
  • Category: ADC/DAC/Data Conversion/Analog To Digital Converters (ADCs)
  • Datasheet: Texas Instruments ADS9120IRGET
  • Interface: SPI
  • resolution: 16Bit
  • Supply Voltage: 1.65V~1.95V
  • number of channels: 1
  • sampling frequency: 2.5MHz
  • Operating Temperature: -40°C~+125°C
  • Package: VQFN-24-EP(4x4)
  • Manufacturer: Texas Instruments
  • Mounting Type: Surface Mount
  • Voltage - Supply, Digital: 1.65V ~ 1.95V
  • Input Type: Differential
  • Architecture: SAR
  • Packaging: Cut Tape (CT)
  • Number of Bits: 16
  • Data Interface: SPI
  • Number of Inputs: 1
  • Supplier Device Package: 24-VQFN (4x4)
  • Ratio - S/H:ADC: 1:1
  • Sampling Rate (Per Second): 2.5M
  • Number of A/D Converters: 1
  • Part Status: Active
  • Package / Case: 24-VFQFN Exposed Pad
  • Voltage - Supply, Analog: 1.65V ~ 1.95V
  • Reference Type: External
  • Base Part Number: ADS912
  • Series: -
  • Features: Internal Oscillator
  • Configuration: S/H-ADC
  • detail: 16 Bit Analog to Digital Converter 1 Input 1 SAR 24-VQFN (4x4)
