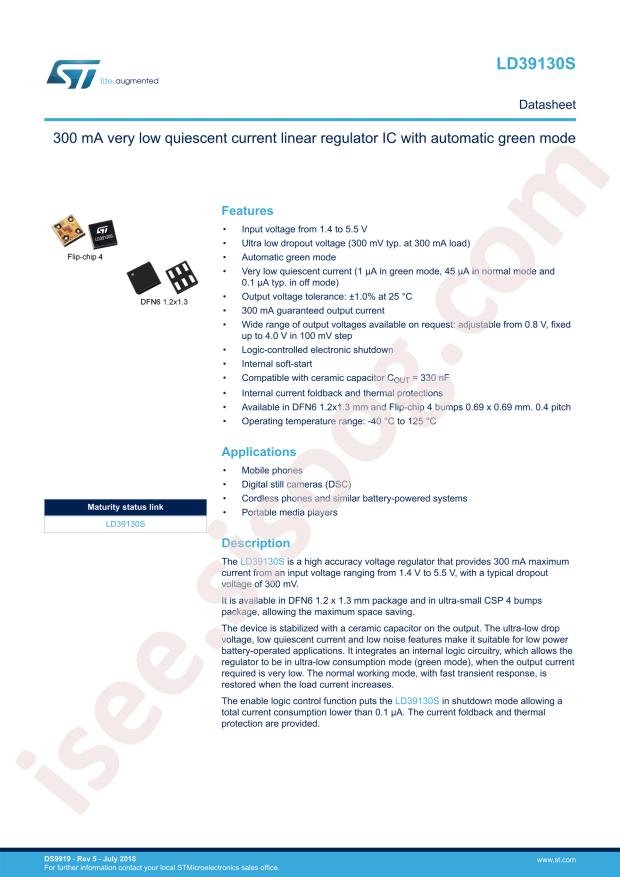

LD39130SJ18R دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
LD39130SJ18R
|
|
حجم فایل
|
68.279
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
31
|
مشخصات فنی
-
RoHS:
true
-
Category:
Power Supply Chip/Linear Voltage Regulators (LDO)
-
Datasheet:
STMicroelectronics LD39130SJ18R
-
Output Type:
Fixed
-
Output Current:
300mA
-
Output Voltage:
1.8V
-
Dropout Voltage:
-
-
Output Polarity:
Positive
-
Number of Outputs:
1
-
Maximum Input Voltage:
5.5V
-
Operating Temperature:
-40°C~+125°C
-
Quiescent Current (Ground Current):
45uA
-
Power Supply Rejection Ratio (PSRR):
70dB@(1kHz),65dB@(10kHz)
-
Package:
FlipChip-4
-
Manufacturer:
STMicroelectronics
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Output Configuration:
Positive
-
Number of Regulators:
1
-
Voltage - Input (Max):
5.5V
-
Voltage - Output (Min/Fixed):
1.8V
-
Voltage - Output (Max):
-
-
Voltage Dropout (Max):
-
-
Current - Output:
300mA
-
Current - Quiescent (Iq):
45µA
-
PSRR:
70dB ~ 65dB (1kHz ~ 10kHz)
-
Control Features:
Enable
-
Protection Features:
Over Current, Over Temperature, Soft Start
-
Mounting Type:
Surface Mount
-
Package / Case:
4-UFBGA, FCBGA
-
Supplier Device Package:
4-FlipChip (.69x.69)
-
Base Part Number:
LD39130
-
detail:
Linear Voltage Regulator IC 1 Output 300mA 4-FlipChip (.69x.69)
