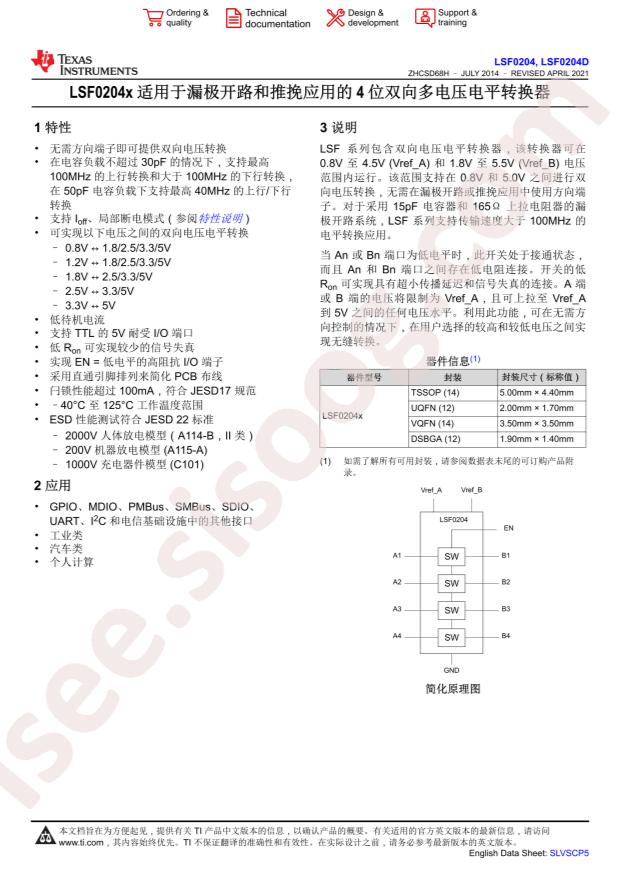

دیتاشیت LSF0204RUTR
مشخصات دیتاشیت
| نام دیتاشیت | LSF0204(D) Datasheet |
|---|---|
| حجم فایل | 1697.317 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 36 |

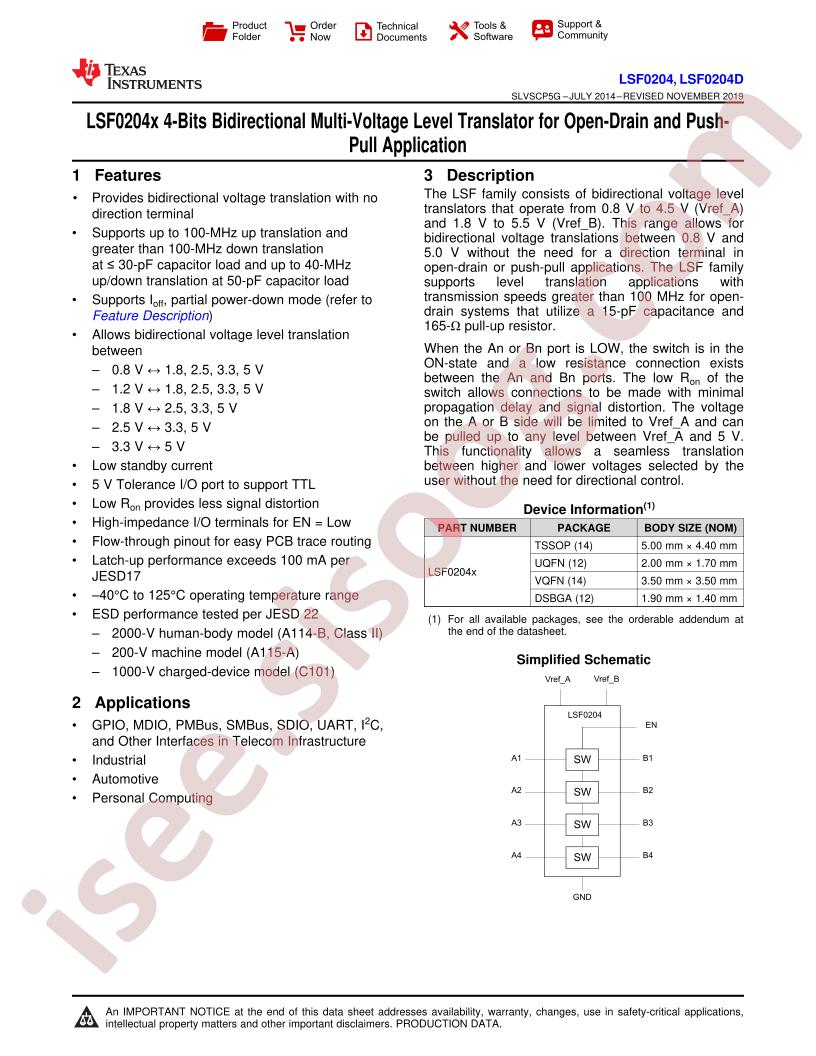

دانلود دیتاشیت LSF0204(D) Datasheet |
LSF0204(D) Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Logic ICs/Translators / Level Shifters
- Features: Automatic direction detection
- Data Rate: -
- Datasheet: Texas Instruments LSF0204RUTR
- Output Type: Open Drain;Push-pull
- Channel Type: Bi-Directional
- Input Signal: -
- Output Signal: -
- Number of Circuits: 1
- Channels per Circuit: 4
- Operating Temperature: -40°C~+125°C
- Supply Voltage (VCCA): 0.8V~4.5V
- Supply Voltage (VCCB): 1.8V~5.5V
- Package: QFN-12(1.7x2)
- Manufacturer: Texas Instruments
- Base Part Number: LSF020
- Packaging: Cut Tape (CT)
- Mounting Type: Surface Mount
- Translator Type: Voltage Level
- Package / Case: 12-UFQFN
- Part Status: Active
- Series: -
- Voltage - VCCB: 1.8V ~ 5.5V
- Voltage - VCCA: 0.8V ~ 4.5V
- Supplier Device Package: 12-UQFN (1.7x2)
- detail: Voltage Level Translator Bidirectional 1 Circuit 4 Channel 100MHz 12-UQFN (1.7x2)
